Embossed FPC waterproof membrane keyboard switch with PET overlay

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
OEM
Application:
electronic equipment
Keypad Button Material:
polyester,polycarbonate
Certification:
ISO9001:2015 SGS
Components:
LED, metal dome, connector and circuite
Name:
2018 Custom Tactile Waterproof 16 Keys Membrane Switch Keypad Panel
Material:
polyester, polycarbonate,Conductive inks
Color:
Pantone and RAL
Dome:
metal dome -poly dome
Feature:
Water-proof
Printing:
Screen Printing and 3D digital printing
Button Type:
Flat/Embossed
Type:
Meet Customer's Demand
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Membrane switch keypad should firstly put in a polybag per 50 pcs ,usually,then packed in a big carton.
According to the clients' requirements.
Port
Tianjin
Video Description
Product Description

Embossed FPC waterproof membrane keyboard switch with PET overlay


membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

1
Material
PET(polyester) ,PC(polycarbonate)
2
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
3
Color
Pantone and RALcolor matching system.
4
Embossing
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes                                                                   2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
5
Keys Options
1.For a tactile response and indicate the location of switches                                         2. Tactile Keys: metal domes or poly domes                                                                         3. Non-tactile keys: flat button, printed silver spot on the circuit
6
Cables
is extension of circuit and communication with your device
7
Circuitry option
1. Silver printed conductive inks                                                                                               2. Copper etched circuit /Polyimide Kapton circuit ( FPC)                                               3.PCB circcuit board
8
Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch                                           2. Female connector with 2.54MM pitch

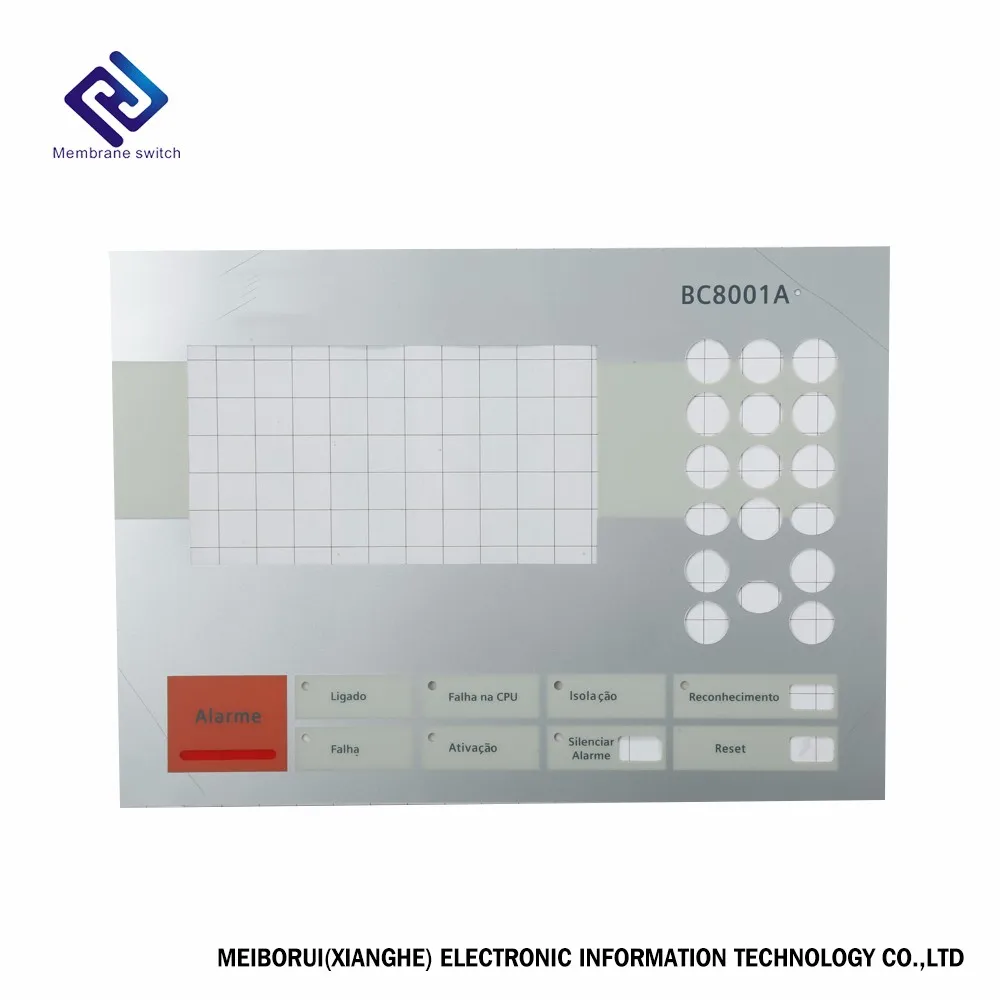

Product Show
Related Products
Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now. Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market's recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base.

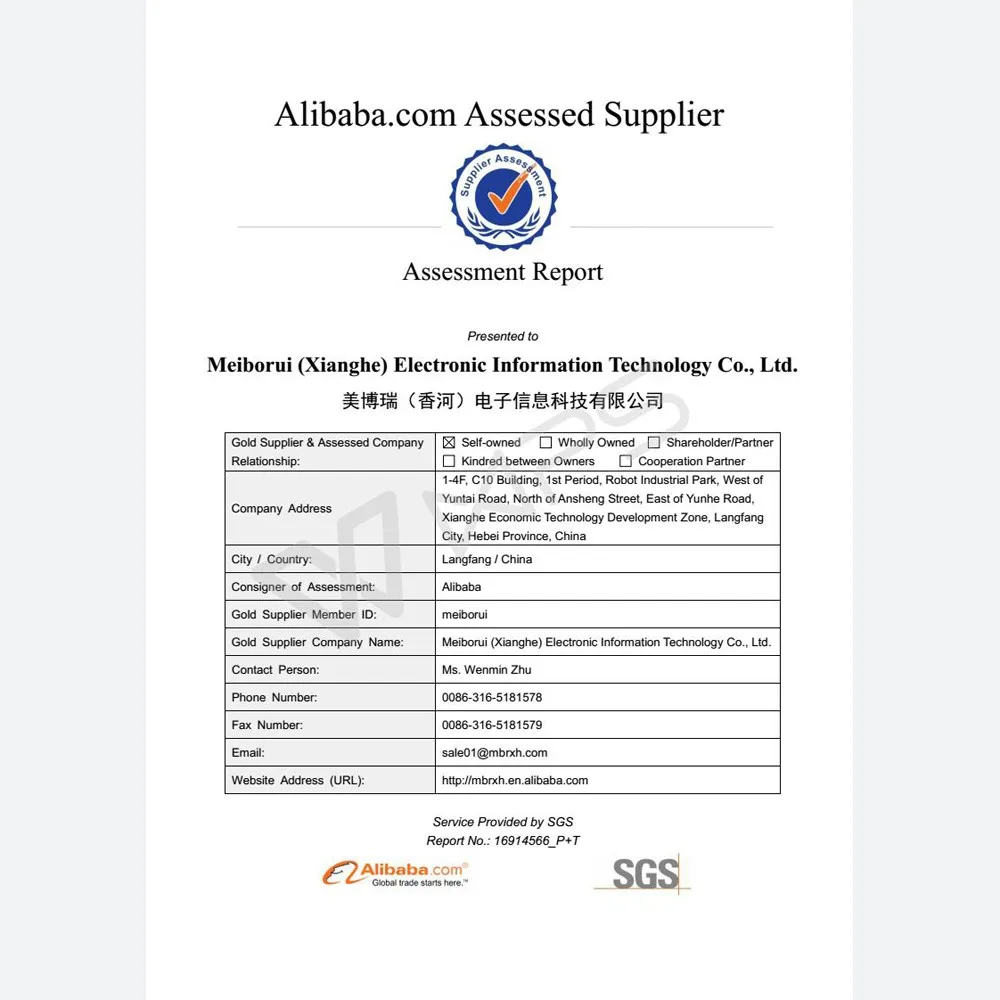

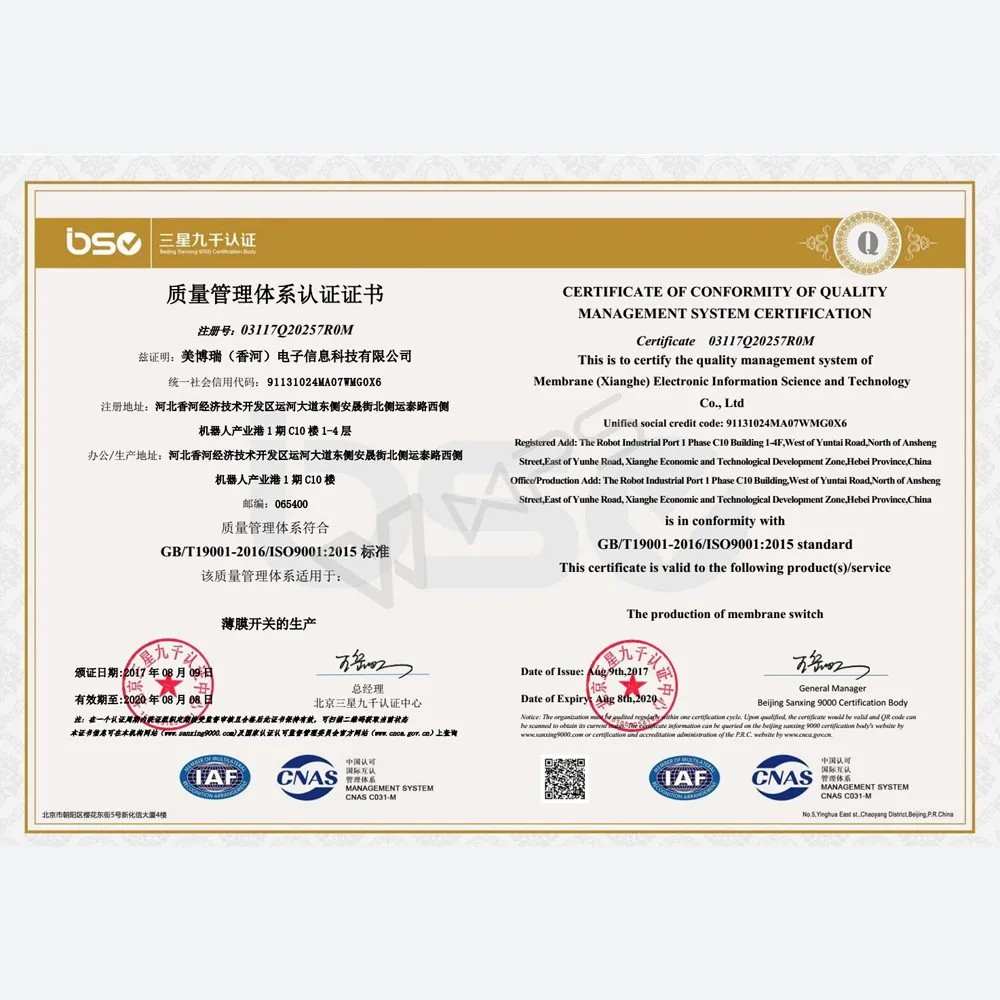

Certifications
Packing & Delivery

Packing

Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10days
Payment Terms:T/T West union
Supply Ability:100000 pieces per Month


Delivery

the sample time is 3-5days
small order :5-7days
big order:10-20days

FAQ

1.How can i get a sample to check your sample?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

5.what kind of transportation do you offer?
Express such as UPS TNT DHL etc......
