Pantone Black Industrial Equipment PET polycarbonate Membrane Switch Panel

FOB Reference Price:Get Latest Price
$0.88 - $8.88 / Pieces | 10 Piece/Pieces (Min. Order)
Samples - $1.20 /Pieces, 1 Pieces (Min. Order): Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Back adhesive:
Black Industrial Equipment PET polycarbonate Membrane Switch Panel
metal dome/poly dome
flexible,custom cable length,tracks pitch
printing silver ink on PET material
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Product Description

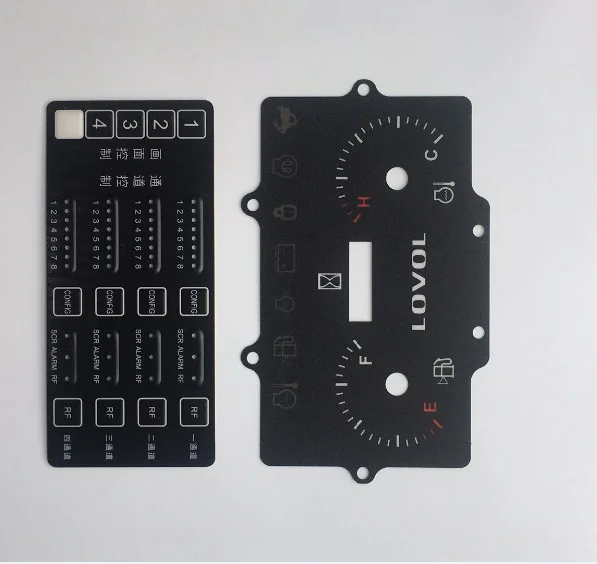

Pantone Black Industrial Equipment PET polycarbonate Membrane Switch Panel

The graphic overlay indicates the location of the keys and is the esthetic component of the keypad or device. MBR selects the best inks and most appropriate materials to manufacture them. Graphic overlays, which are particularly necessary for membrane switches, are also useful for instruments with mechanical keys, product identification, labels, and dashboards.
The image is silk screened and placed behind a transparent surface, ensuring permanent identification.

Raw  Material

Finish of surface
Graphic Overlay
 0.175/.25/.35 mm
0.175/.25/.35 mm
Fine Texture
Valvet Texture
Gloss with Hard Coat

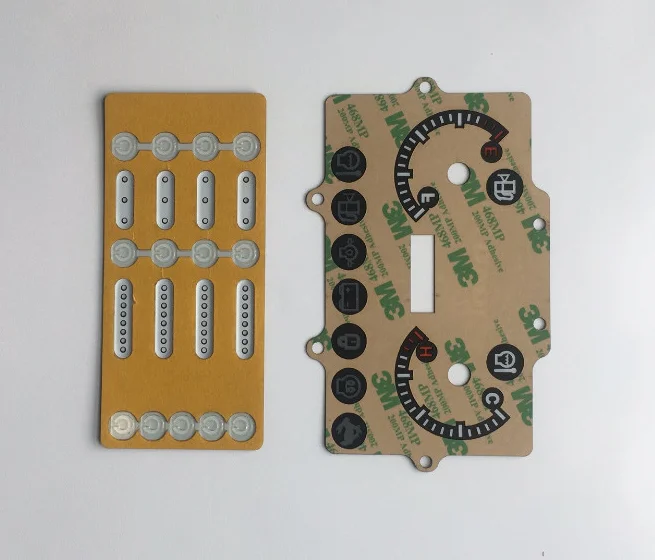

Rear Adhesive
Paper Double-sided Tape

General Specification
Operating Temperature
-20° to 65° C (-4° to 149° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.
Special sealing options are available for wet environments.
.007 inches to .015 inches
Operating Force
4oz to 8oz
Operating Voltage
30 volts maximum
Operating Current
10 microamps to 100 milliamps, resistive
Closed Circuit Resistance
100 ohms typical, dependent on size and layout
Open Circuit Resistance
10 megohms
Operating Power
1 watt maximum
X-Y matrix or one side common

Technology Process
Related Products

embedded LED membrane switch / keyboard / keypads

4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard

Membrane Swith Front Panel Graphic Overlay

Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market's recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.

Packing & Delivery


Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T Western Union
Supply Ability:100000 pieces per Month


1.How can i get a sample to check your sample?

After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

5.what kind of transportation do you offer?

Express such as UPS TNT DHL etc......
