Embossing PET membrane keypad switch with lcd transparent window

FOB Reference Price:Get Latest Price
US $0.88-8.88 / Piece | 10 Piece/Pieces (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
Tianjin
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Certification:
ISO9001:2015
Feature:
Water-proof
Back adhesive:
3M467,3M468
Name:
Embossing PET membrane keypad switch with lcd transparent window
Dome:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Color:
Pantone
Printing:
Screen Printing and 3D digital pringting
Connector:
2.54mm female connector or 1mm ZIF connector
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Delivery Time
within 5-10days
Product Description

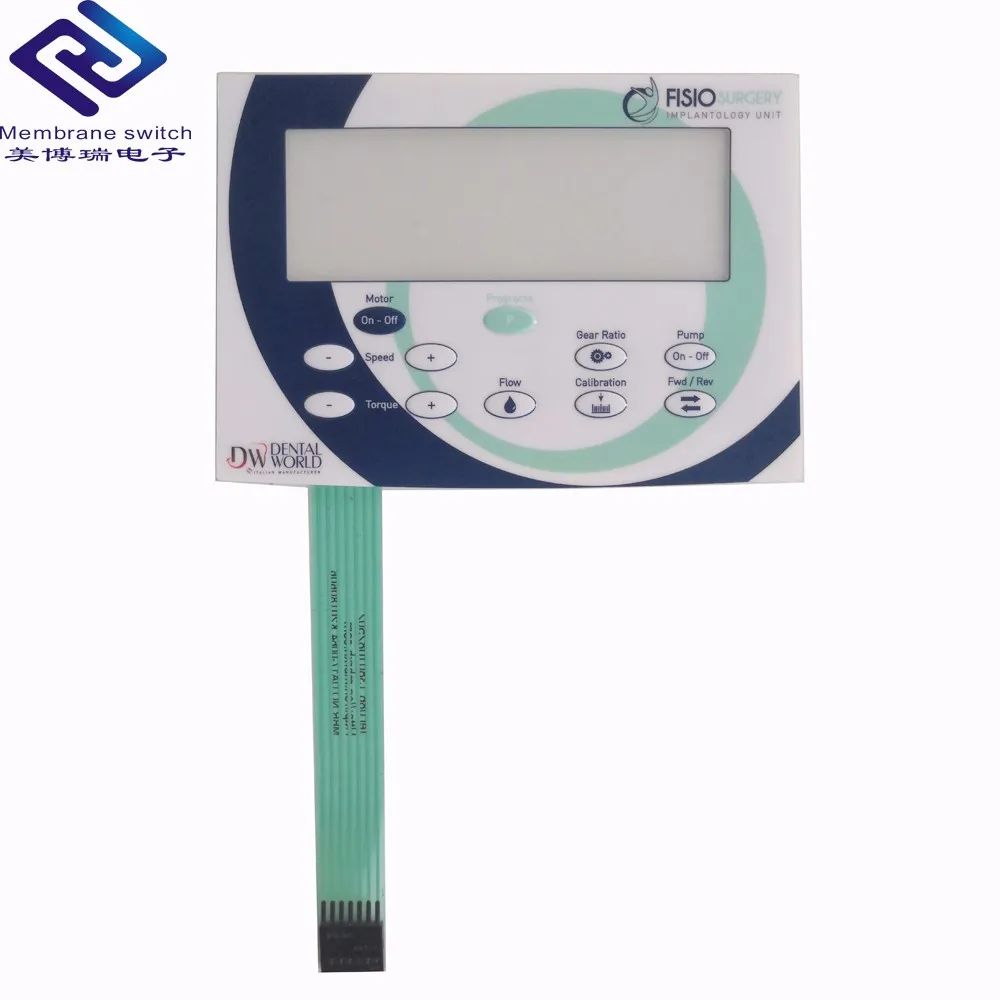

Embossing PET membrane keypad switch with lcd transparent window

The graphic overlay indicates the location of the keys and is the esthetic component of the keypad or device. MBR selects the best inks and most appropriate materials to manufacture them. Graphic overlays, which are particularly necessary for membrane switches, are also useful for instruments with mechanical keys, product identification, labels, and dashboards.
The image is silk screened and placed behind a transparent surface, ensuring permanent identification.

Material
Part
Raw  Material

Finish of surface
Pacification
Graphic Overlay
PC
Glossy
 0.175/.25/.35 mm
Matte
0.175/.25/.35 mm
PET
Fine Texture
0.15/.20mm
Valvet Texture
0.15/.20mm
Gloss with Hard Coat
0.180mm
Rear Adhesive
Paper Double-sided Tape

0.10mm
General Specification
Environmental
Operating Temperature
-20° to 65° C (-4° to 149° F)
Storage Temperature
-40° to 85° C (-40° to 185° F)
Seals
3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.
Special sealing options are available for wet environments.
Mechanical
Travel
.007 inches to .015 inches
Operating Force
4oz to 8oz
Electrical
Operating Voltage
30 volts maximum
Operating Current
10 microamps to 100 milliamps, resistive
Closed Circuit Resistance
100 ohms typical, dependent on size and layout
Open Circuit Resistance
10 megohms
Operating Power
1 watt maximum
Circuitry
X-Y matrix or one side common

Technology Process
Related Products

embedded LED membrane switch / keyboard / keypads

4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard


Membrane Swith Front Panel Graphic Overlay

Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market’s recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.

Certifications
Packing & Delivery

Packing

Payment & Shipping Term
Price:0.88-8.88/piece
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T Western Union
Supply Ability:100000 pieces per Month
