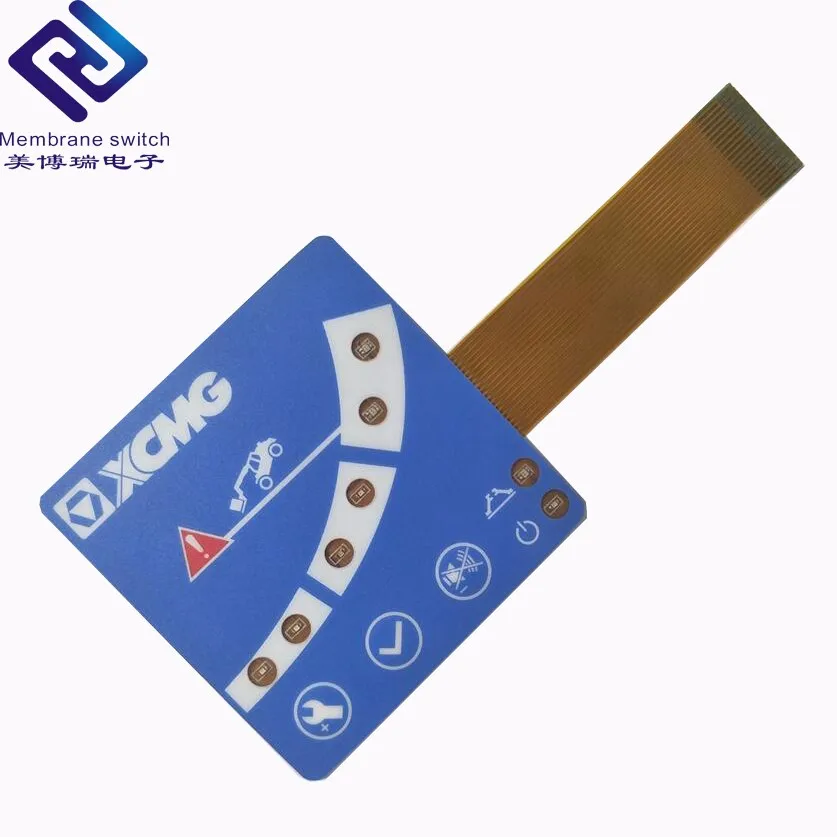

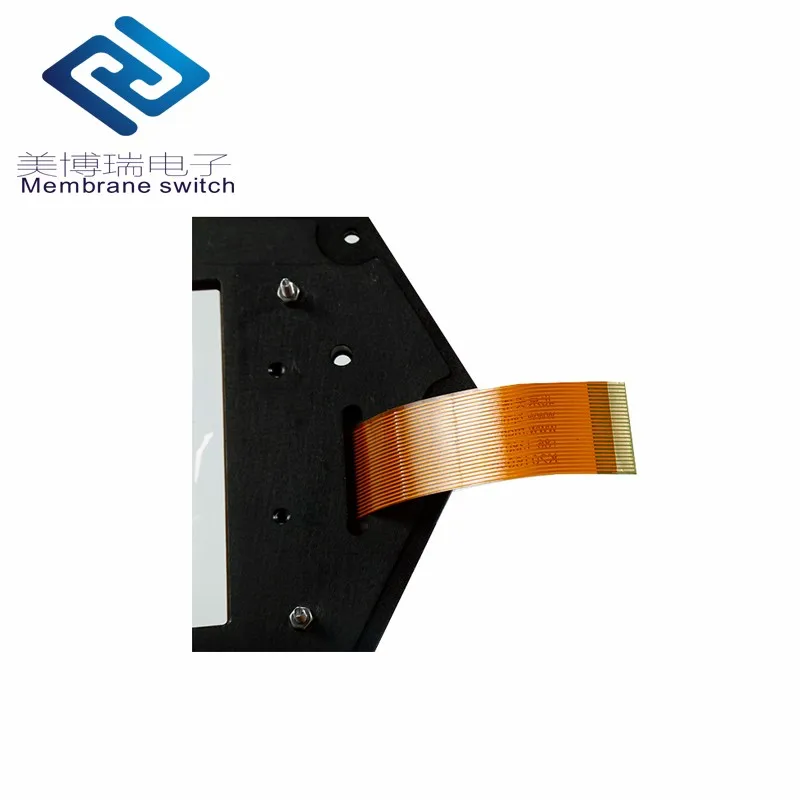

Membrane Switch Control Panel FPC Circuit Integrated Non-tactile Push Button PET/PC/PVC

FOB Reference Price:Get Latest Price
US $0.8-8.8 / Pieces | 10 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Certification:
ISO9001:2015
Feature:
Water-proof
Back adhesive:
3M467,3M468
Name:
Membrane Switch Control Panel FPC Circuit Integrated
Dome:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Color:
Pantone
Material:
PET PC PVC
Structure:
6 layers
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Product Description

High Quality Membrane Switch Control Panel FPC Circuit Integrated Non-tactile Push Button PET/PC/PVC

Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

Related Products

Glossy Polycarbonate/Polyster

 Embossed Keys Membrane Switch Keypad/keyboard

Customized PC/PET Membrane    Switch Keyboard with PCB/PCBA

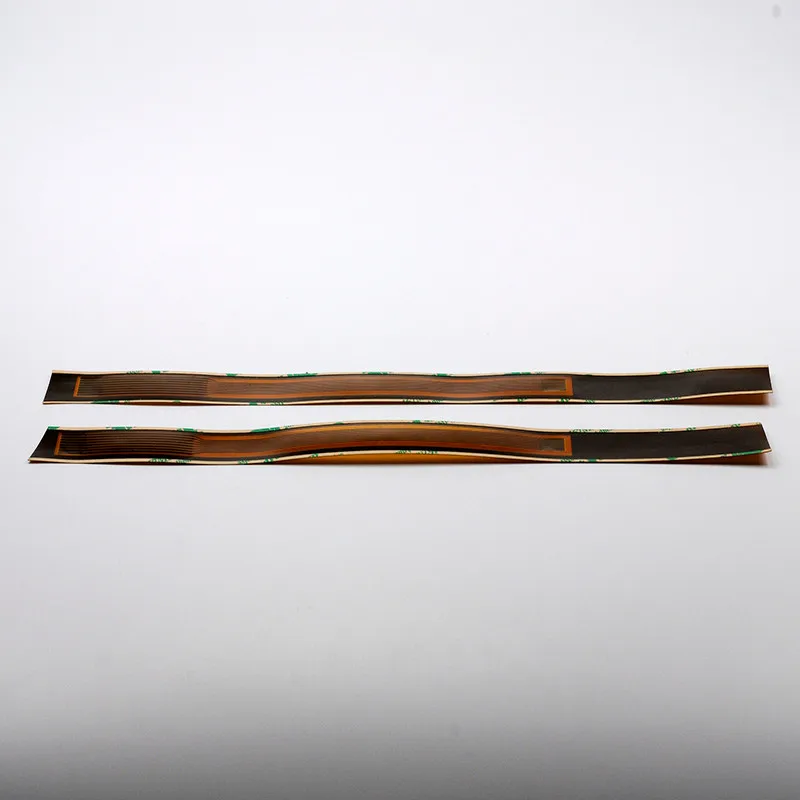

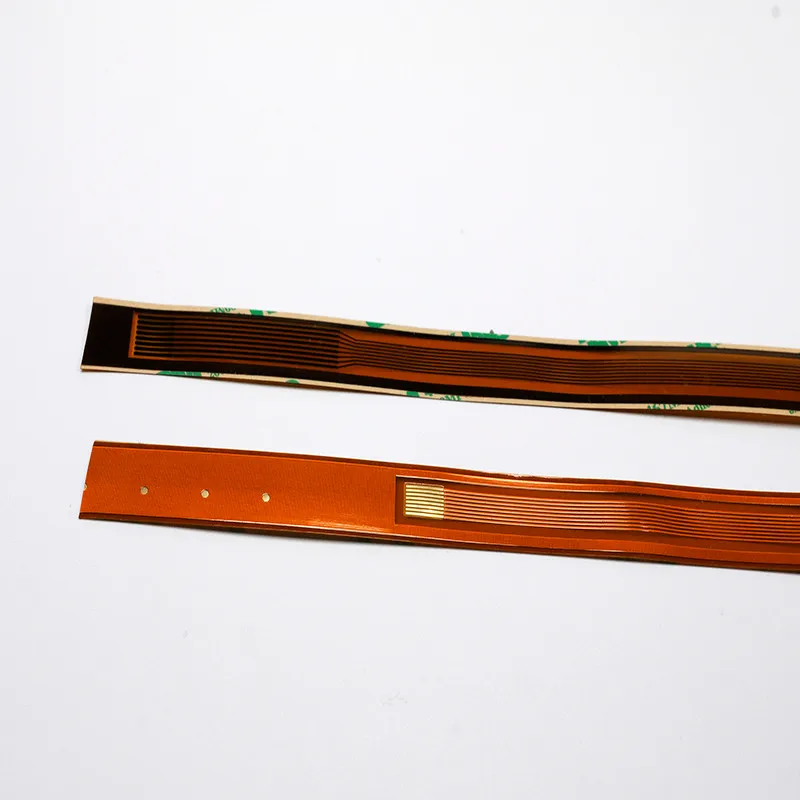

Single/Double Side Flexible Printed Board FPC Membrane Switch

Technical Parameters
1.
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
2.
Dimension
According to customers demand,OEM service
3.
Surface Material
PC(polycarbonate), PET(polyester)
4.
Embossed type
Pillow emboss, Dome emboss, Frame emboss

5.

Keys Options
For a tactile response and indicate the location of switches
1.Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit
6.
Cables
The extension of circuit and communication with your device

7.

Circuitry option
1. Silver printed conductive inks
2.Copper etched circuit /Polyimide Kapton circuit ( FPC)
3.PCB circcuit board


8.


Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch
3.Male connector
4.Solder Pins
9.
Window
Clear or Transparent
10.
Surface
Glossy or matte
Our Company

MEIBORUI Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEIBORUI has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEIBORUI passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

From establishment, our company is continuously expanding, so our products won the international market's recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.

Nowadays, MEIBORUI owns sixty professional mold-making machines controlled by digital computers, which successfully transformed silkscreen printing to digital printing. There are 4 Japanese Mimaki heat-setting digital printers and 11 cold light printers of various models. We have independent laser cutting workshops and 18 laser cutting machines of different models. The equipment of all departments includes 7 pressure machines, 4 cutting mould machines, 37 silkscreen printing machines, 3 drying tunnels, 8 curing machines, 6 punching machines, 7 digital engraving machines, 5 linear cutting machines and others machines.

Contact Info


eVonne
MEIBORUI Electronic Information Technology Co., Ltd.
Skype:+86 17098258983

QQ:1872823448
Mail: evonne(at)mbrxh.com
Website: https://mbrxh.en.alibaba.com
http://en.mbrxh.com

Application
Certifications
Packing & Delivery

Packing

Payment & Shipping Term
Price:1.5-5.0/piece
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-20 days
Payment Terms:T/T Western Union
Supply Ability:100000 pieces per Month

Delivery


the sample time was 1-3days
small order :5-7days
big order:10-20days
FAQ

1.How can i get a sample to check your sample?

After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

5.what kind of transportation do you offer?

Express such as UPS TNT DHL etc......
