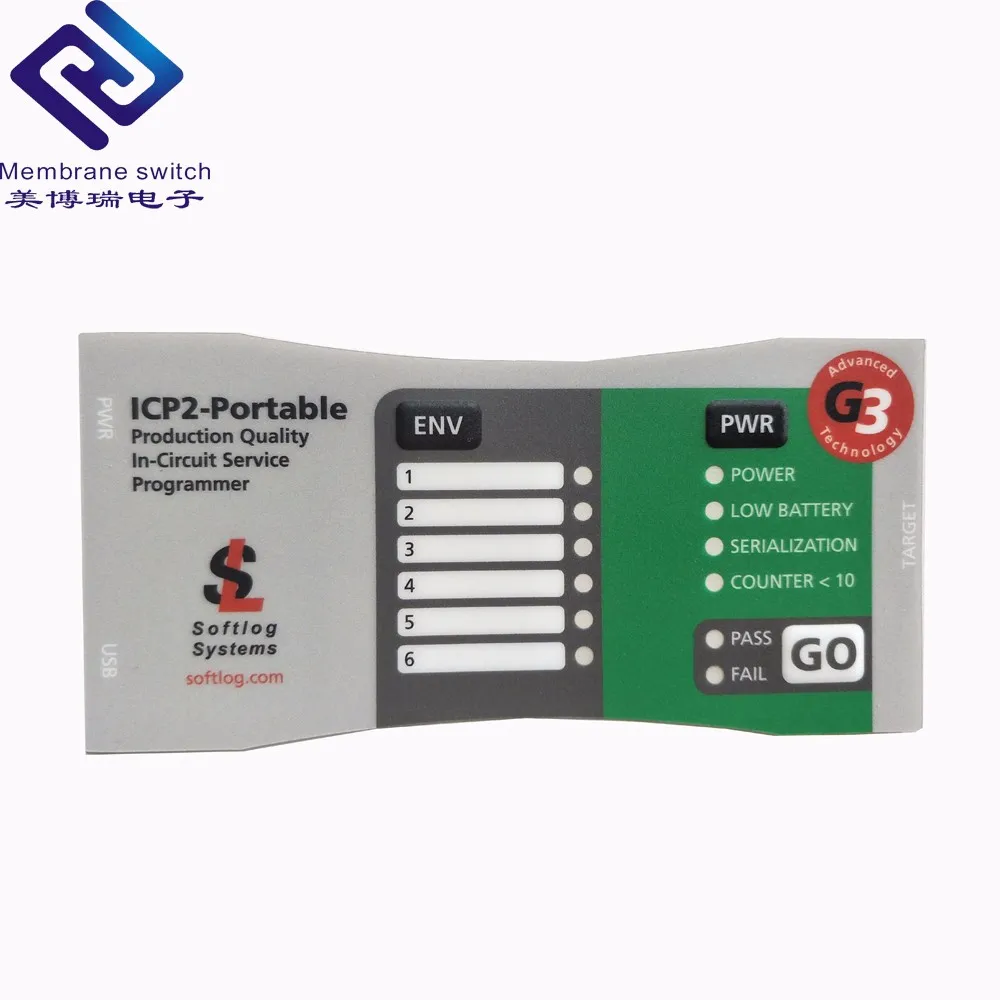

Customized LED Membrane Switch PET/PC Graphic Overlay

FOB Reference Price:Get Latest Price
$0.50 - $3.50 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PC
Material:
PET/PC
Color:
Pantone or RAL
Certification:
ISO9001:2015 SGS
Printing:
Silk Screen Printing
Feature:
Long Service Life
Type:
Adhesive Sticker
Membrane switch:
Control System
Size:
Customized Size Accepted
Life Expectancy:
1 Million Times

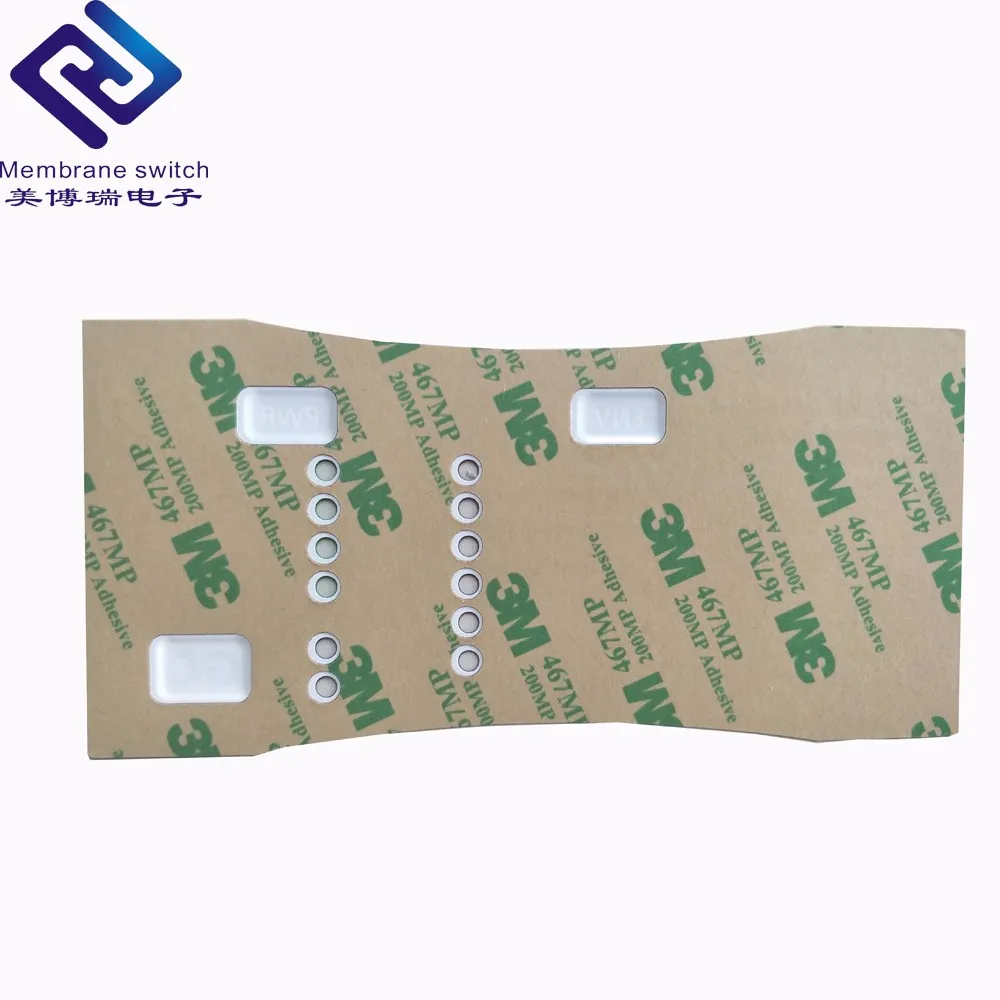

Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Lead Time :
2-3weeks
Video Description
Product Description

The main properties of custom design electronic membrane switch
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type

3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes

5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.

Keypad Button Material: PET/PC
Storage Temperature: -40°C (-40°F) to +70°C (158°F)
Certificate: ISO9001:2015
Electronic Characteristic:: <35V ( DC ) <100mA 1W
Life Expectancy:: flat type ≥ 500 million,
tactile type: ≥ 100 million times
Circuit:: printing silver ink on PET material

Connector:: 2.54mm female connector or 1mm ZIF connector

Our Company

MEIBORUI was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.

Applications:
* Medical equipment
* Telecommunications apparatus
* Military industries
* Household appliances
* Security systems
* Industrial controls

Processing Ability

MeiBoRui(MBR) can offer both non-tactile and tactile switches in a range of forces that can be combined either with a customised graphic overlay or a silicon keypad. We can customise the final solution to incorporate:

PCB or flexible PCB – incorporate your membrane switch onto a
PCB for ease of connection and to reduce the cost of
a separate control board.
Metal or plastic back panels – Increase the rigidity of
the membrane and allows for ease of assembly to a casing.
Backlighting – Selective or indicator backlighting by placing SMD
inside the membrane
Integrated Electronics – incorporate metal domes, LED’s,
connectors into your membrane panels.
Shielding – To meet your ESD, EMI or RFI requirements
Integration with touchscreens – Add membrane switch keys to
supplement your touchscreen product

Packing & Delivery

Packing

1.Paper carton for flexible membrane switch (outer)
2.Plastic bubble bag for tactile membrane keyboard (inner) .

We will produce labels for you, with your company logo. Master Carton produced and printed to fit your product needs.

Or per your requirements

Delivery

Delivery Time: small order 7--10 days, Mass production: 10-20 days
Payment Terms:T/T,Western Union,Visa, E-checking, PayPal
Supply Ability:100000 pieces per Month

FAQ

Q:What about the sample policy?

A:
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a
quotation.
Q:What is the production time?

A:
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks
Q:Can you do the design for us?

A:
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the
graphic of the face.
Q:What information you need for quotation?

A:
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button Embossed Or Flat
Button No. :3
LED No. :
Pin:
Pitch:2.54mm
Cable Length:30mm
Connector: Female /Male/DoPont Connector
Hole: None
5.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
