fpc copper circuits membrane switch and film keypad
metal dome/poly dome
flexible,custom cable length,tracks pitch
printing silver ink on PET material
PET PC PVC
2.54mm pitch female/male connector
100000 Piece/Pieces per Month
Packaging & Delivery
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement

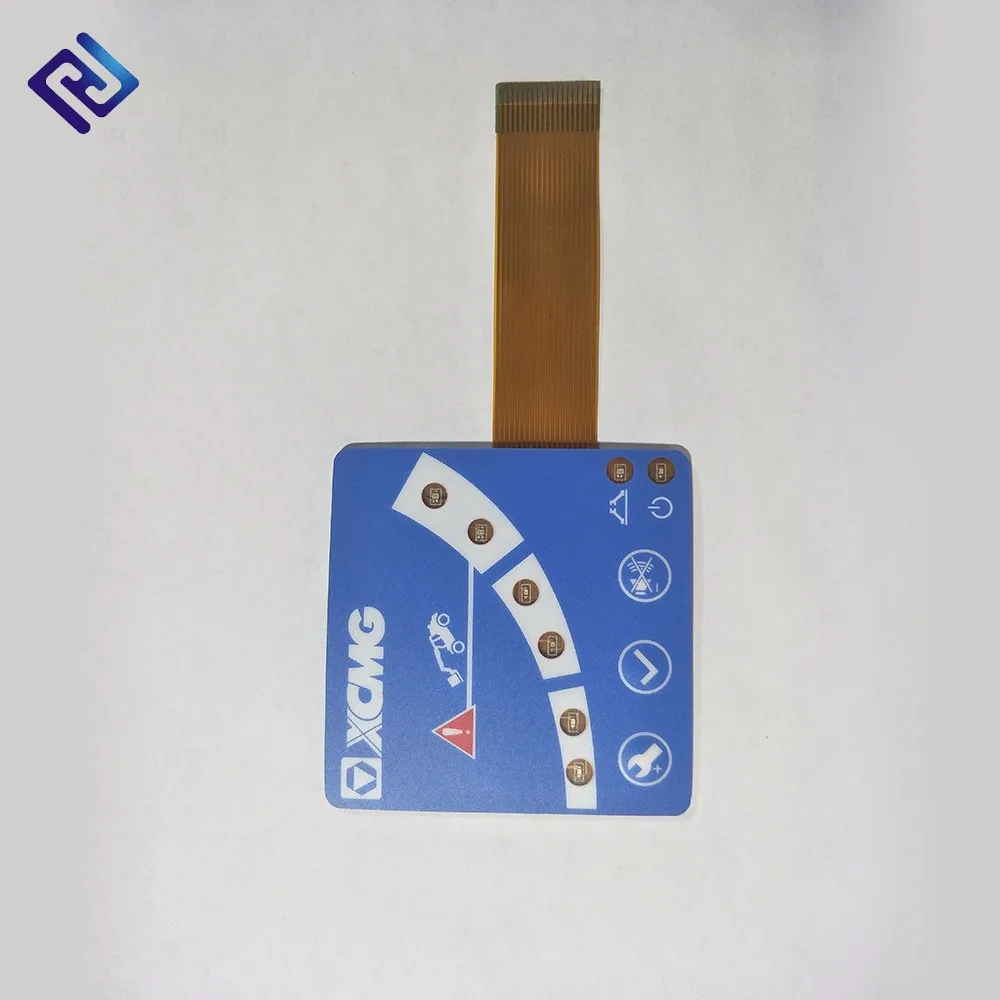

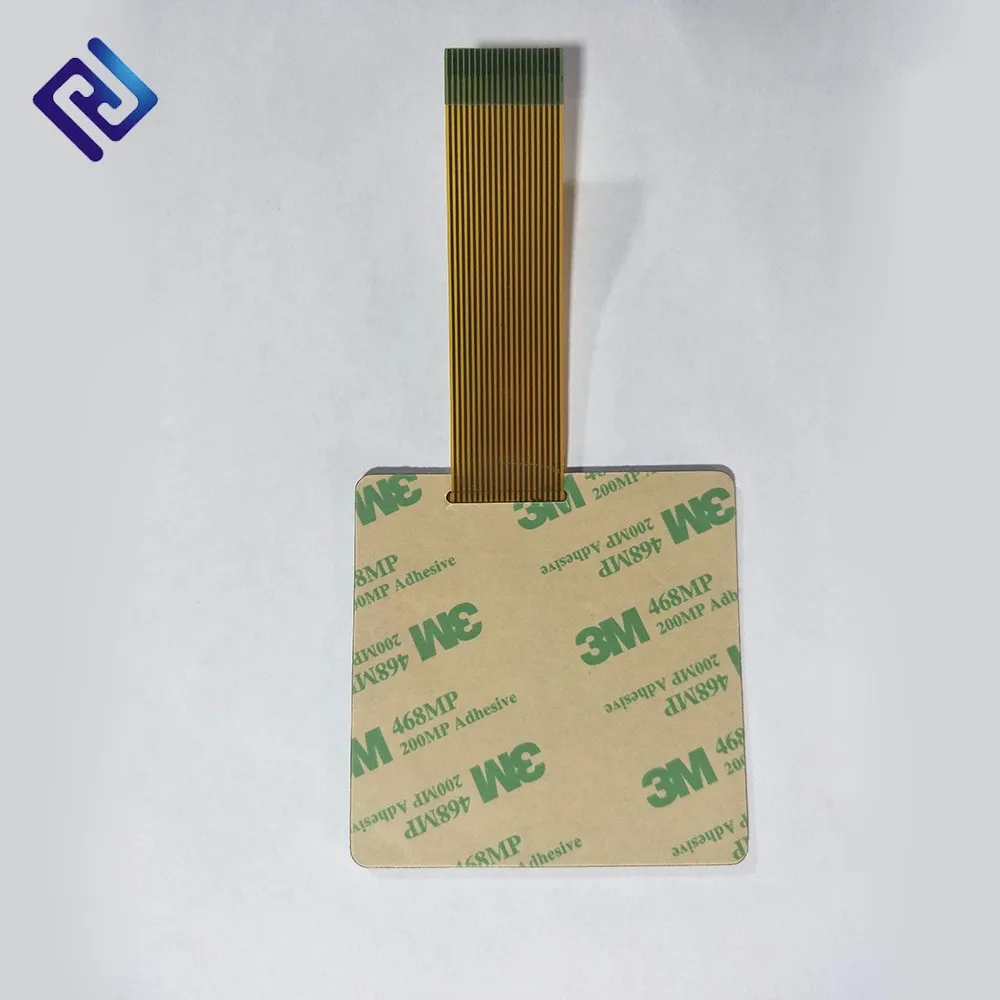

custom fpc copper circuits membrane switch and film keypad with embossed round metal snap dome and 3M adhesive
Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.
Membrane switch circuit layer using FPC (flexible PCB). Circuit of high precision, qualifying spacing 1.0mm, the resistance value is very low, welded four colors LED, stable and reliable performance and long service life. This product is mainly used for functional keyboard communication device, feel good, powerful. Autotype Fine Texture 0.15mm PET(polyester) panel with screen printing, this product according to customer needs to design key content, color, effect, the appearance of fine, rich colors. In addition, the product includes an electrostatic shielding layer, so good antistatic effect of the product.
Embossed Keys Membrane Switch Keypad/keyboard
Customized PC/PET Membrane Switch Keyboard with PCB/PCBA
Single/Double Side Flexible Printed Board FPC Membrane Switch
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
According to customers demand,OEM service
Pillow emboss, Dome emboss, Frame emboss
For a tactile response and indicate the location of switches
1.Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit
The extension of circuit and communication with your device
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch
Clear or Transparent
Glossy or matte
MEIBORUI Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEIBORUI passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.
From establishment, our company is continuously expanding, so our products won the international market’s recognition including Siemens, ABB, Haier and some well known enterprise. We took part in high speed railway locomotive control, three gorges project, aerospace industry and other state-owned project, and formed our own stable client base. The products exported to Germany and America reached 1 million pieces annually.
Nowadays, MEIBORUI owns sixty professional mold-making machines controlled by digital computers, which successfully transformed silkscreen printing to digital printing. There are 4 Japanese Mimaki heat-setting digital printers and 11 cold light printers of various models. We have independent laser cutting workshops and 18 laser cutting machines of different models. The equipment of all departments includes 7 pressure machines, 4 cutting mould machines, 37 silkscreen printing machines, 3 drying tunnels, 8 curing machines, 6 punching machines, 7 digital engraving machines, 5 linear cutting machines and others machines.
Packing & Delivery
1.Big paper carton for all membrane switches and graphic overlay (outer) . 2.White or red plastic bubble bag for tactile membrane keyboard (inner) .
Delivery Time: small order 7--10 days, Mass production: 10-20 days Payment Terms:T/T,Western Union,Visa, E-checking, PayPal Supply Ability:100000 pieces per Month
1. What about the sample policy? (1)Free Samples: If you paid the shipment fee, we can provide free samples for you. (2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation. 2. What is the production time? (1)Custom sample: About 7 days. (2)Mass production: About 2--3 weeks 3. Can you do the design for us? Yes. There ate many professional engineer having rich experience in graphic overlays& circuit designing. Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face. 4. What information you need for quotation? (1)Drawings, photos, requirement, quantity (2)Overlay Dimension: Material: PET/PC Finish:Matte/Glossy Adhesive:3M467/3M468 Button Embossed Or Flat Button No. :3 LED No. : Pin: Pitch:2.54mm Cable Length:30mm Connector: Female /Male/DoPont Connector Hole: None 5.How to control quality? (1)We process the products strictly based on the raw material list. (2)Our many engineer own many years experience and are very responsible. (3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
