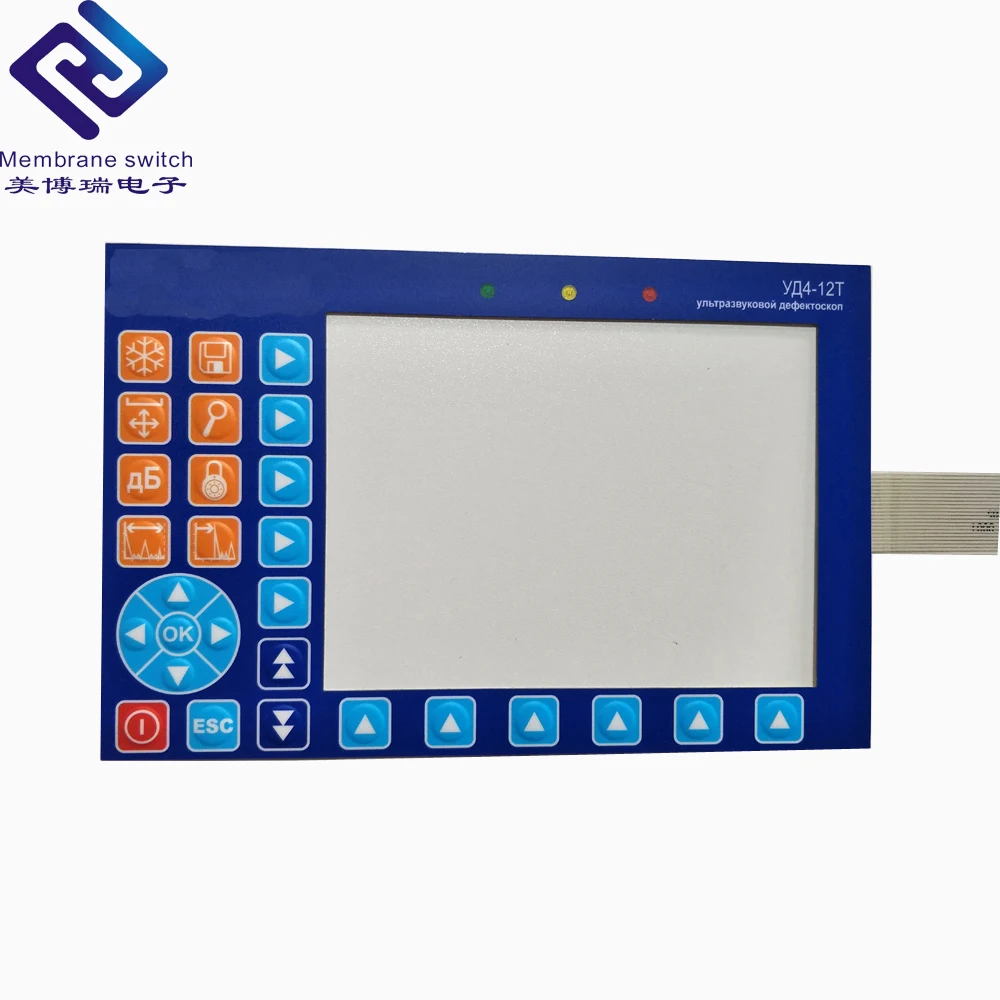

Matrix Matte PET/PC Transparent Window Membrane Keypad Switch

FOB Reference Price:Get Latest Price
US $0.18-1.18 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
MBR-V130
Application:
Industrial controls
Keypad Button Material:
PET/PC
Material:
PET/PC
Color:
Pantone or RAL
Certification:
ISO9001:2015 SGS
Printing:
Silk Screen Printing
Feature:
Long Service Life
Type:
Adhesive Sticker
Membrane switch:
Control System
Size:
Customized Size Accepted
Life Expectancy:
1 Million Times
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1. Paper Carton (outer)
2. Plastic Bubble Bag (inner)
Port
Beijing
Lead Time :
1-3weeks
Product description
Overlay Materials
The most commonly used base materials are autotype polyester and polycarbonate.
Rear Adhesive
 3M 467MP, 3M 468MP ,and other double side adhesive  ; foam adhesive
Connector
2.54 female connector or male connector,2.54 bending pin connector,solder pin ,1mm ZIF connector
Window
die cutting window,clear window ,colored window.
LED
single or two tone LED can be embedded
Matching color
Pantone and RAL color matching system.
Printing Type
screen printing or digital printing.
Standard Tolerances
+/-.010 inch.(+/-0.2mm)
Thickness
0.4-1.2mm
circuit layout
silver printed conductive circuit,FPC
subject to customers detailed requests,customized design accept

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires

2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.

3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.

4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.

Our Company

MEIBORUI was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.

Applications:
* Medical equipment
* Telecommunications apparatus
* Military industries
* Household appliances
* Security systems
* Industrial controls

Related Products

Insulation touch screen membrane pad switch with insulating oil

New technology interactive interface capacitive touch membrane switch

Custom prototype membrane keycaps/keypad with 3M adhesive

KW-4C digital ultrasonic flaw detector embossed membrane switch

Packing&Delivery

Packing

Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T, West Union
Supply Ability:100000 pieces per Month

Delivery

The sample time was 1-3days
Small order :5-7days
Big order:10-20days


FAQ

Q: How to order membrane switch?
A:You can tell me your size. color .material,surface,finish,rear adhesive, etc. You'd better send me the drawing together with panton color or RAL color.
Q:what is the delievery time?
A:The sample time is about 7-10days.The quantity order would take 1-2 weeks.For complicated product should take 1 more week.
Q: Shall we supply samples?
A:Yes, but freight collect.Most of the item is customzied order.so it need molding charge.
Q: What is our payment term?
A:As the client need, we mainly receive trade assurance, TT, west union etc.
