Medical Equipment/Industrial Control/Home Appliances
Keypad Button Material:
Pantone ,RAL, OEM
1 Million Times
Meet Customer's Demand
Water-proof, Dust Resistance
metal dome/poly dome
100000 Piece/Pieces per Month
Packaging & Delivery
Standard package or according to your request.
1 - 100
101 - 1000
To be negotiated

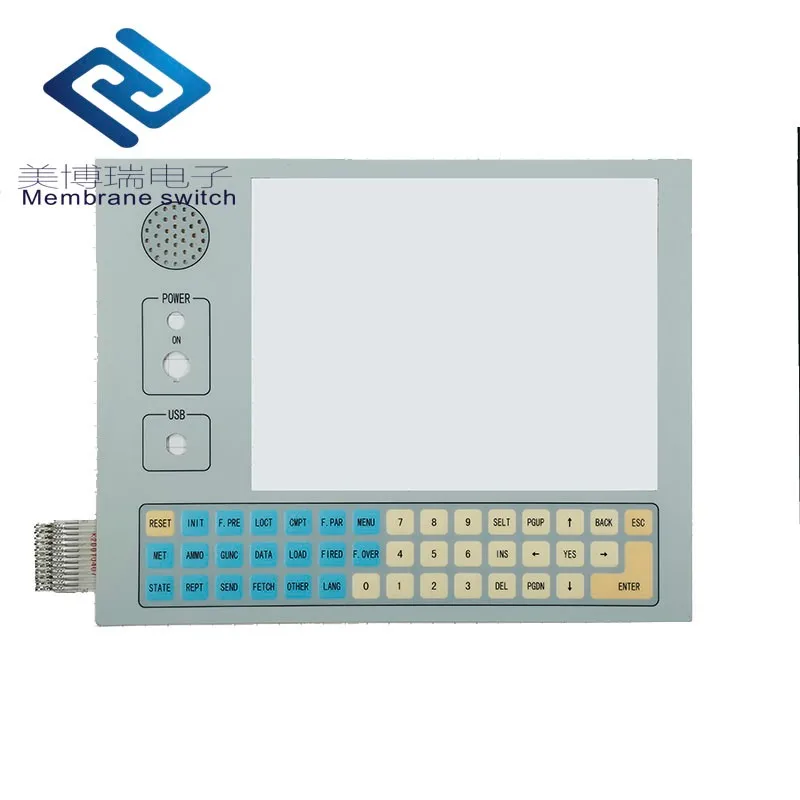

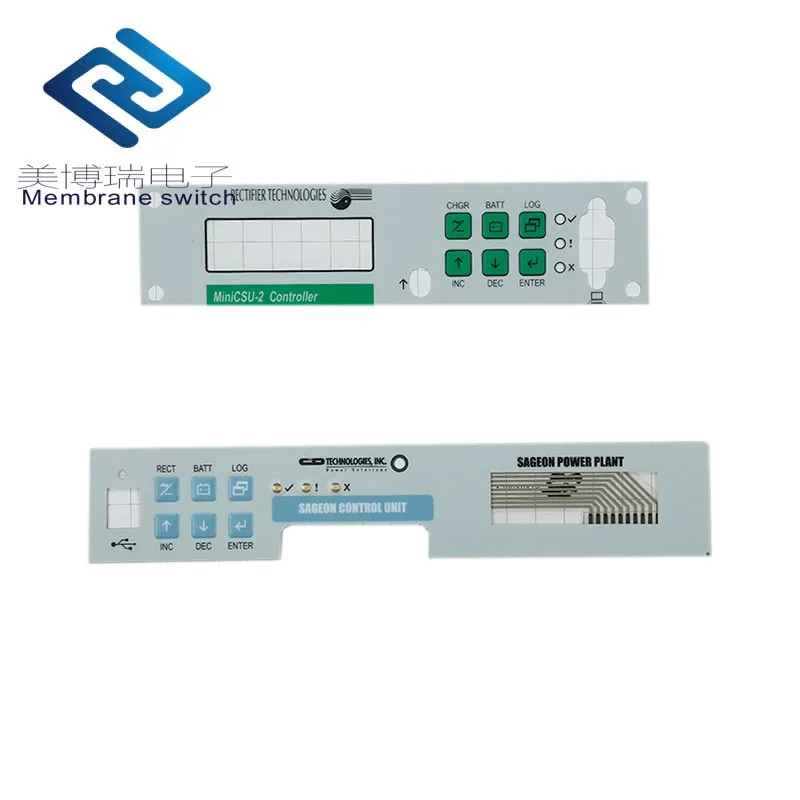

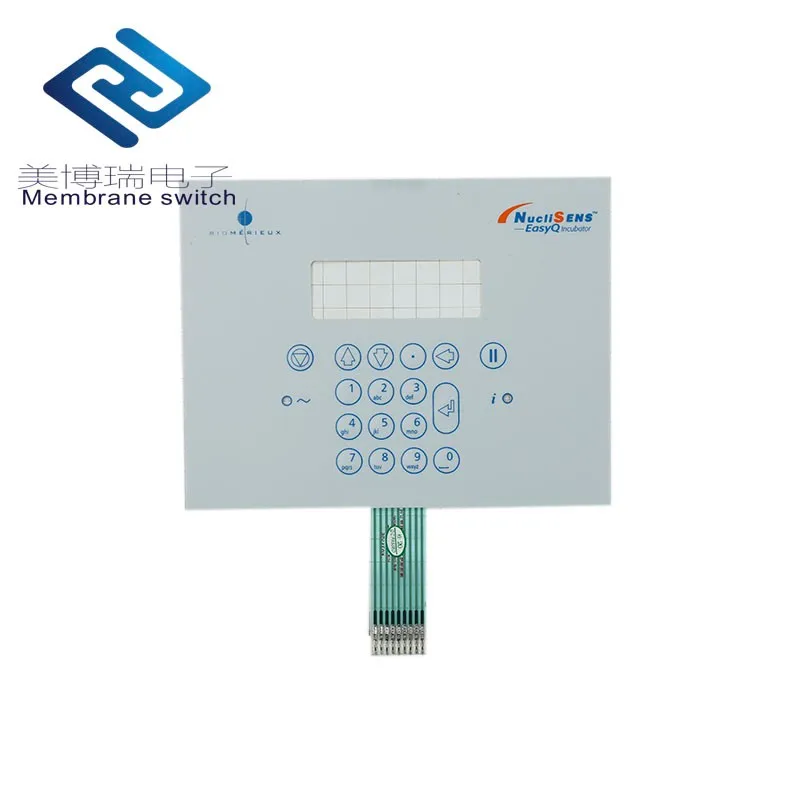

Professional Manufacturer Membrane Switch Control Panel Clear Spacer
Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.
The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.
We have two factories in China . Nowadays, many famous European enterprises are working with us. If you are searching for a reliable and successful membrane switch manufacturer in China, we are the best choice which with the best quality, the lowest price and state of the art technology. You are welcome to buy directly from us and cut out the middlemen.
The most commonly used base materials are autotype polyester and polycarbonate
3M 467MP, 3M 468MP ,and other double side adhesive
2.54 female connector or male connector,2.54 bending pin connector,solder pin ,1mm ZIF connector
1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires
2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.
Custom Membrane Keypad Nintendo Switch FPC Circuit Keyboard for Home Appliances
MeiBoRui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.
Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer.
Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.
In China, we have two factories. Nowadays, many large European enterprises are our partner. If you are searching for membrane switch manufacturer from China, we are the best choice with the lowest price, the best quality and state of the art technology.
Enjoy High Reputation
Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.
15 Years Experience
Since 2002, MeiBoRui was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.
The Member of Alibaba Trust Pass
Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market’s recognition.
Packing Payment & Shipping Term Minimum Order Quantity:10pieces Supply Ability:100000 pieces per Month Packaging Details:PE bag, Carton, Wooden crate Delivery Time:5-10 days Payment Terms:T/T, West Union
Delivery The sample time was 1-3days Small order :5-7days Big order:10-20days
1、What is your terms of delivery? Mainly by air. 2、What is your sample policy? We will provide free sample, but buyer need pay for the freight and taxes. 3、How can I buy this product? You can contact us on the internet or call to us. 4、How to guarantee the after sales service? Our company already passed the SGS authoritative certification. We will get the most guarantee the buyer’s profit. If any quality problem happened, we will provide returning and exchanging goods service. Most professional sales team will serve for you.
