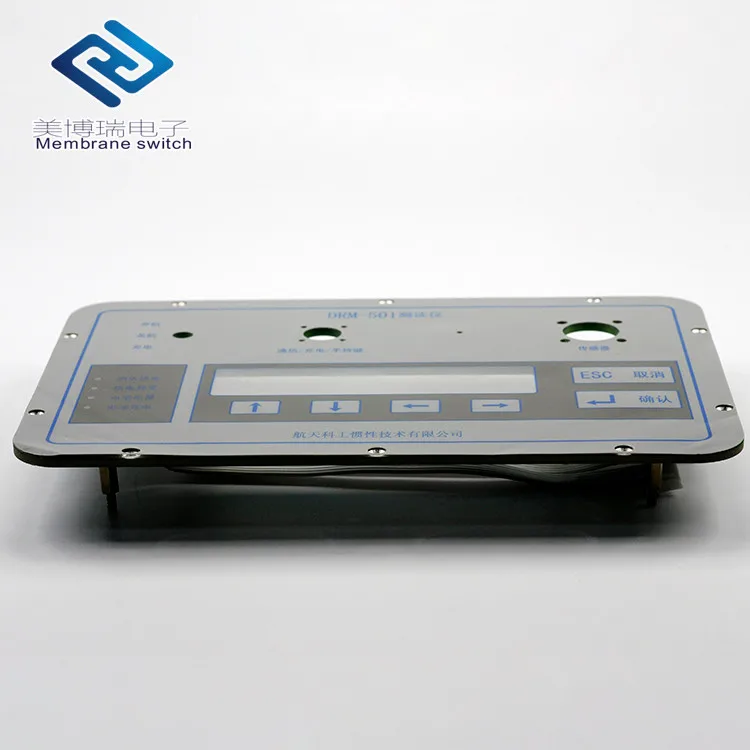

Custom PCBA membrane switch panel sticker with electrical components for industrial controller

FOB Reference Price:Get Latest Price
$0.80 - $8.80 / Units | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Max. Current:
50mA
Max. Voltage:
220V
Certification:
ISO9001:2015, SGS
Connector:
2.54mm pitch female/male connector
Color:
Pantone
Life expectancy:
> One Million Times
Material:
Polyester, Polycarbonate, Conductive inks
Function:
ON-OFF-ON
Name:
Custom PCBA membrane switch panel sticker
Size:
Customized Size
Button color:
many color optional
Tactile feeling:
metal dome/poly dome
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Lead Time :
Within 1--15 days
Product Description
Custom PCBA membrane switch panel sticker with electrical components for industrial controller

1. With more than 27 years experience on manufacturing membrane switches & panels
2. Our company want to open up global market.
3. We respect your idea enough and provide you OEM service.

Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.

The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.

We have two factories in China . Nowadays, many famous European enterprises are working with us. If you are searching for a reliable and successful membrane switch manufacturer in China, we are the best choice which with the best quality, the lowest price and state of the art technology. You are welcome to buy directly from us and cut out the middlemen.

Specifications:

1. Wire lead resistance
<1Ω/cm
2. Rated current
25-100mA, 0-30V DC
3. Operating temperature
-40 to 70°C
4. Rated voltage
<50V DC
5. Operating humidity
at 40°C, <98% RH
6. Insulation resistance
<100mΩ, 250V DC
7. Dome spring back time
<5m seconds
8. Switch travel
flat type 0.05-0.3mm
9. Base material voltage withstand
1500V DC
10. Tactile type
0.3-1.0mm


A PCB (or printed circuit board), is typically made of copper-clad cloth or fiber infused into a resin material. The cloth/fiber used, along with the resin material, creates a cloth-to-resin ratio to determine the laminate’s type designation (FR-4, CEM-1, G-10, etc.). FR-4 is the most common material used today.
An acid-resistant solder mask is applied to the copper-clad PCB, and the exposed areas (not covered by the solder mask) are etched away using acid. The exposed copper pathways are plated with various metals to protect the copper from corrosion. Gold plating is often required on many PCBs in critical applications where corrosion and exposure to chemicals is an issue.

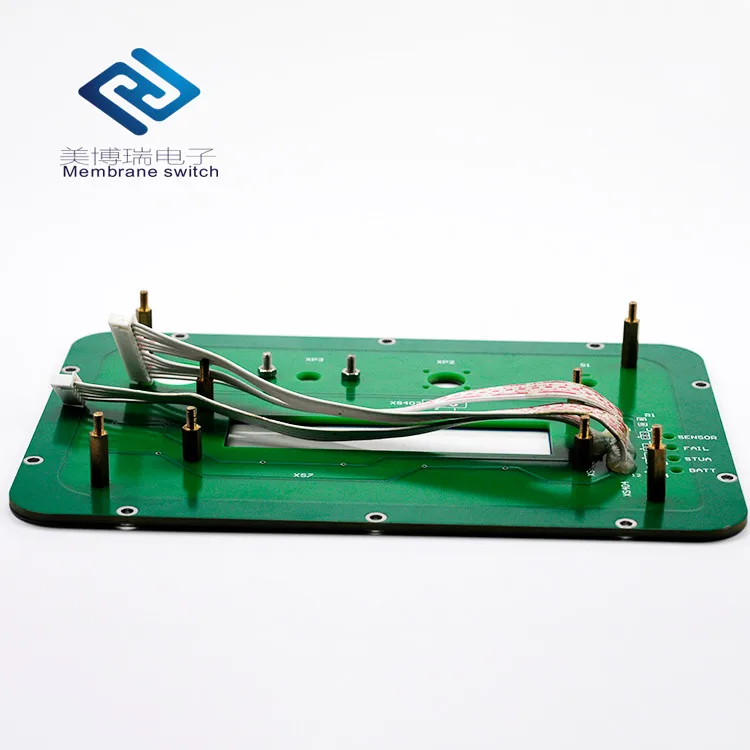

The PCB Membrane Switch construction utilizes a PCB (as described above) as the main structure/support substrate, with the membrane switch on the front of the PCB assembly, and the display (along with the other discrete components) on the back side of the PCB.

Our Company

MEIBORUI was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.

Factory Process

Alice
MeiBoRui(MBR) membrane keypad and switch manufacturer
Tel: +86 17098258983
Whatsapp: +86 17098258983
Skype:+86 17098258983
QQ:1872823448
Mail: Alice(at)mbrxh.com
Website: http://en.mbrxh.com
https://mbrxh.en.alibaba.com

Reputation

     Enjoy High Reputation


Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.


    15 Years Experience


Honesty is the basic of corporate. Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.


The Member of Alibaba Trade Pass

Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market’s recognition.


Packing & Delivery

Packing

1.Big paper carton for all membrane switches and graphic overlay (outer) .
2.White or red plastic bubble bag for tactile membrane keyboard (inner) .

Delivery

Delivery Time: small order 7--10 days, Mass production: 10-20 days
Payment Terms:T/T,Western Union,Visa, E-checking, PayPal
Supply Ability:100000 pieces per Month

FAQ

1. What about the sample policy?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.

2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks

3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit  designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.

4. What information you need for quotation?
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468

Button Embossed Or Flat
Button No. :3
LED No. :
Pin:
Pitch:2.54mm
Cable Length:30mm
Connector: Female /Male/DoPont Connector
Hole: None
5.How to control quality?

(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions
