FPC/PET circuit capacitive touch button membrane switch

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Certification:
ISO9001:2015
Feature:
Water-proof
Back adhesive:
3M467,3M468
Name:
FPC/PET circuit capacitive touch button membrane switch
Dome:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Printing:
Silk Screen Printing
Color:
Pantone
Material:
Polyester/polycarbonate
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to customers requirement
Port
Tianjin
Lead Time :
within 5-20days
Video Description
Product Description
Overlay
PC 0.175MM/PET F150,V200
Spacer
PET Spacer 0.1MM
Top Circuit
Dopunt PET 0.1MM
Spacer
PET Spacer 0.2MM
Button Circuit
Dopunt PET 0.1MM

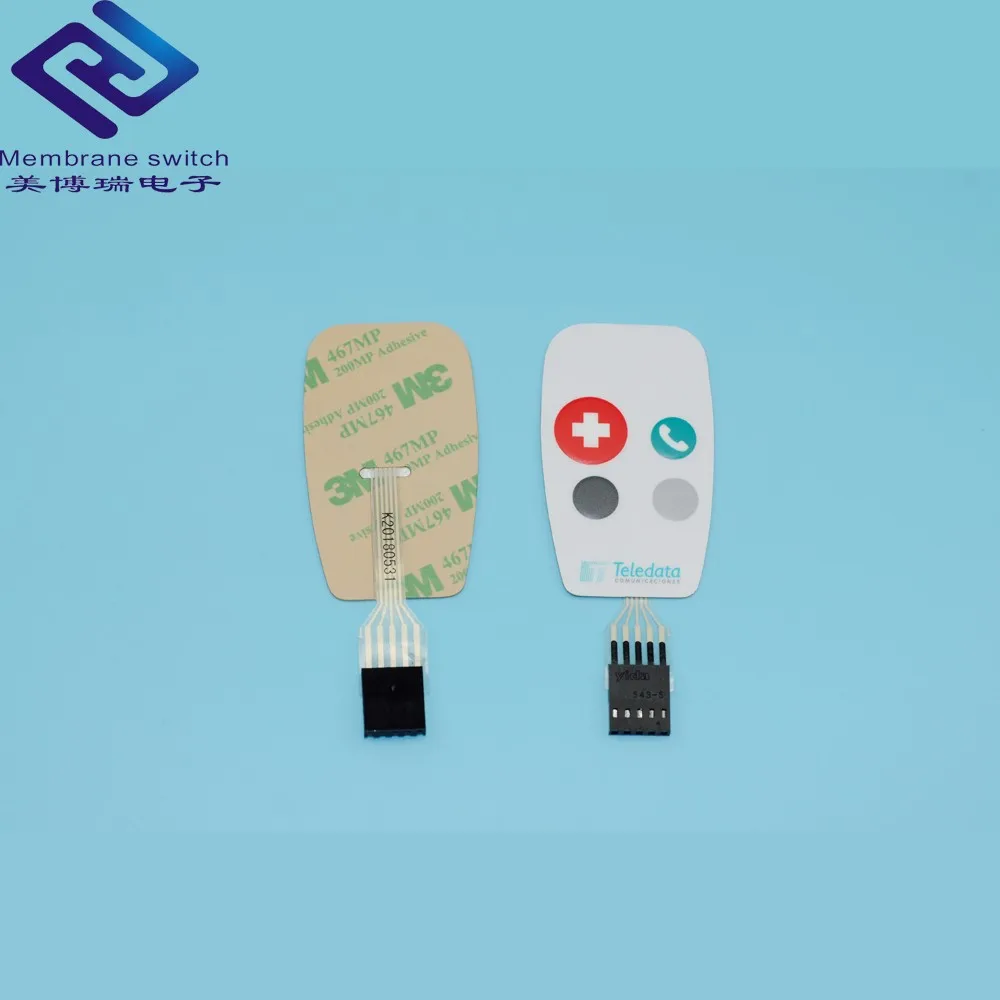

Adhesive
3M468 0.13MM

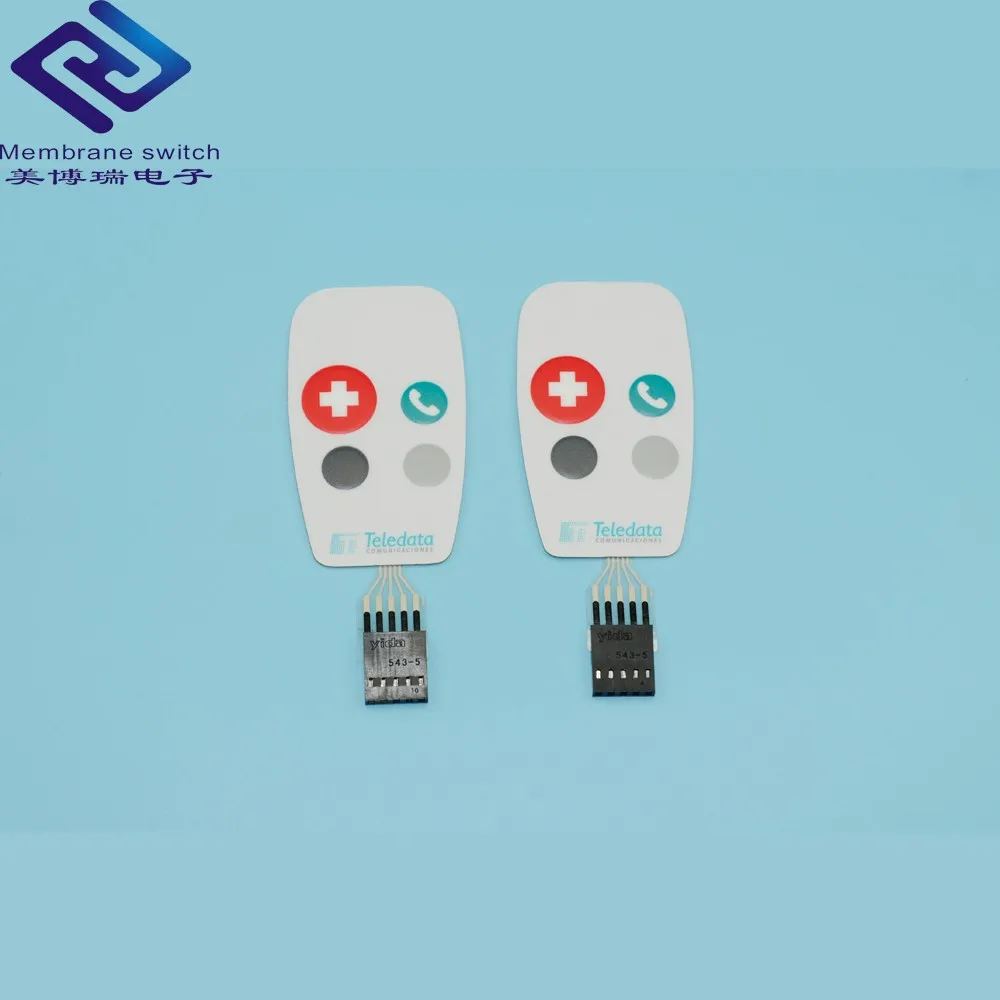

FPC/PET circuit capacitive touch button membrane switch

Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

Components

1,with metal dome tactile button
2,with digital printing overlay panl
3,with flex cable
4,with 2.54mm female connector
5,LED ,Transparent Window is available
6,Adhesive.3M Glue
