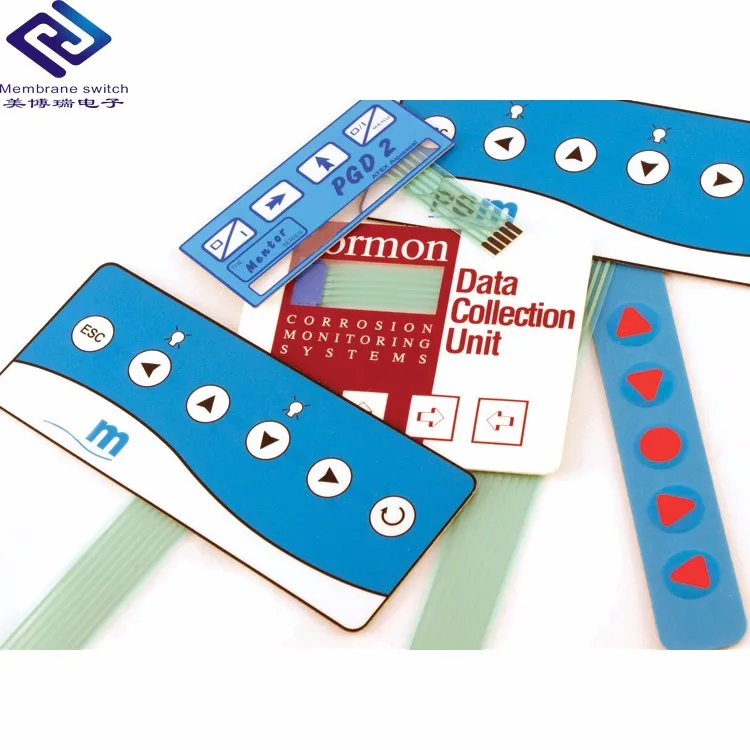

PET Embossed Button Tactile Front Panel Membrane Overlay Electronic Keyboard With Flexible Circuit

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
electronic equipment
Keypad Button Material:
polyester,polycarbonate
Certification:
ISO9001:2015 SGS
Components:
LED, metal dome, connector and circuite
Name:
Flexible Circuit membrane panel
Material:
polyester, polycarbonate,Conductive inks
Color:
Pantone and RAL
Dome:
metal dome -poly dome
Back Adhesive:
3M467,3M468
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Connector:
2.54mm female connector or 1mZIF connector
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
should firstly put in a polybag per 50 pcs ,usually,then packed in a big carton.
According to the clients' requirements.
Port
Tianjin
Lead Time :
within 5-20days
Product Description

PET Embossed Button Tactile Front Panel Membrane Overlay Electronic Keyboard With Flexible Circui

1
Material
PET(polyester) ,PC(polycarbonate)
2
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
3
Color
Pantone and RALcolor matching system.
4
Embossing
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes                                                                          2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
5
Keys Options
1.For a tactile response and indicate the location of switches                                                      2. Tactile Keys: metal domes or poly domes                                                                                   3. Non-tactile keys: flat button, printed silver spot on the circuit
6
Cables
is extension of circuit and communication with your device
7
Circuitry option
1. Silver printed conductive inks                                                                                                          2. Copper etched circuit /Polyimide Kapton circuit ( FPC)  3.PCB circcuit board
8
Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch                                                  2. Female connector with 2.54MM pitch
Product Show
Related Products
Our Company

MeiBoRui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.
Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer.
Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.
In China, we have two factories. Nowadays, many large European enterprises are our partner.
If you are searching for membrane switch manufacturer from China, we are the best choice with the lowest price, the best quality and state of the art technology.

Certifications
Packing & Delivery

Packing

Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-20days
Payment Terms:T/T ,West Union
Supply Ability:100000 pieces per Month


Delivery

FAQ

1.How can i get a sample to check your sample?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4.what kind of transportation do you offer?
Express such as UPS TNT DHL etc......
