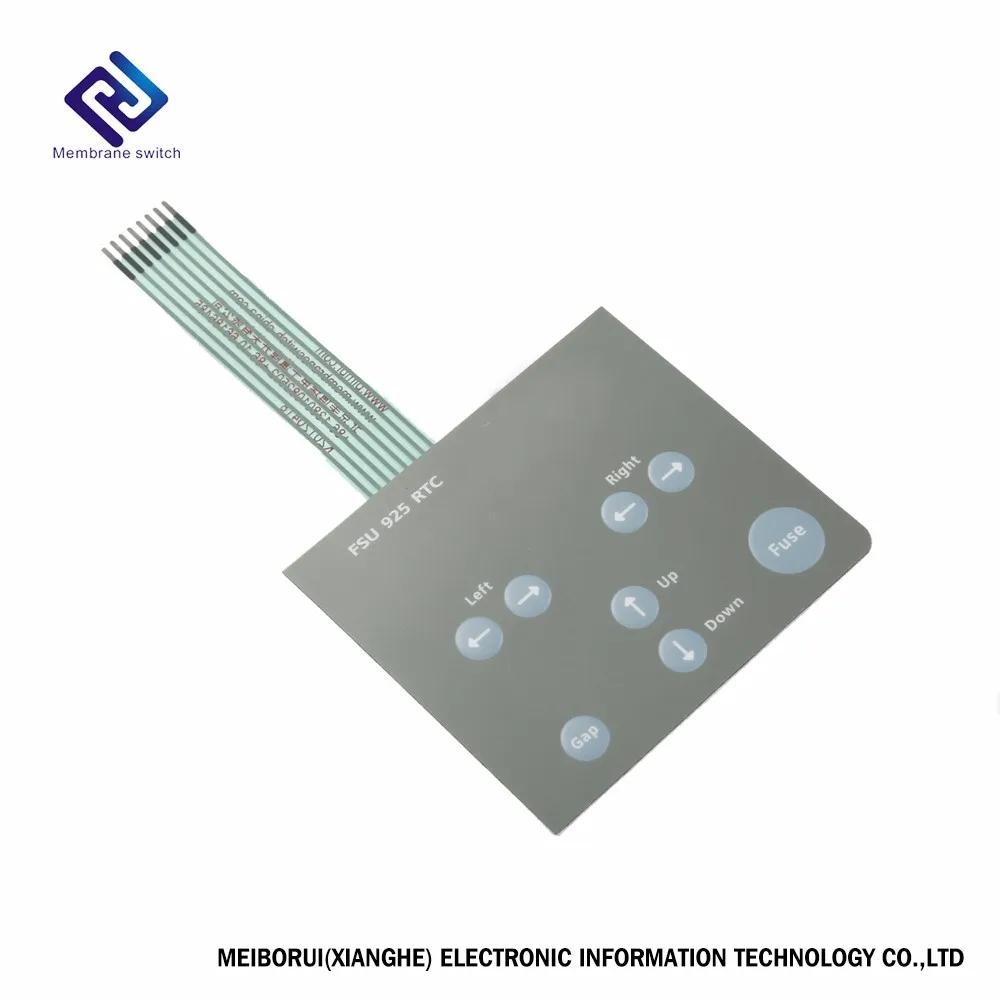

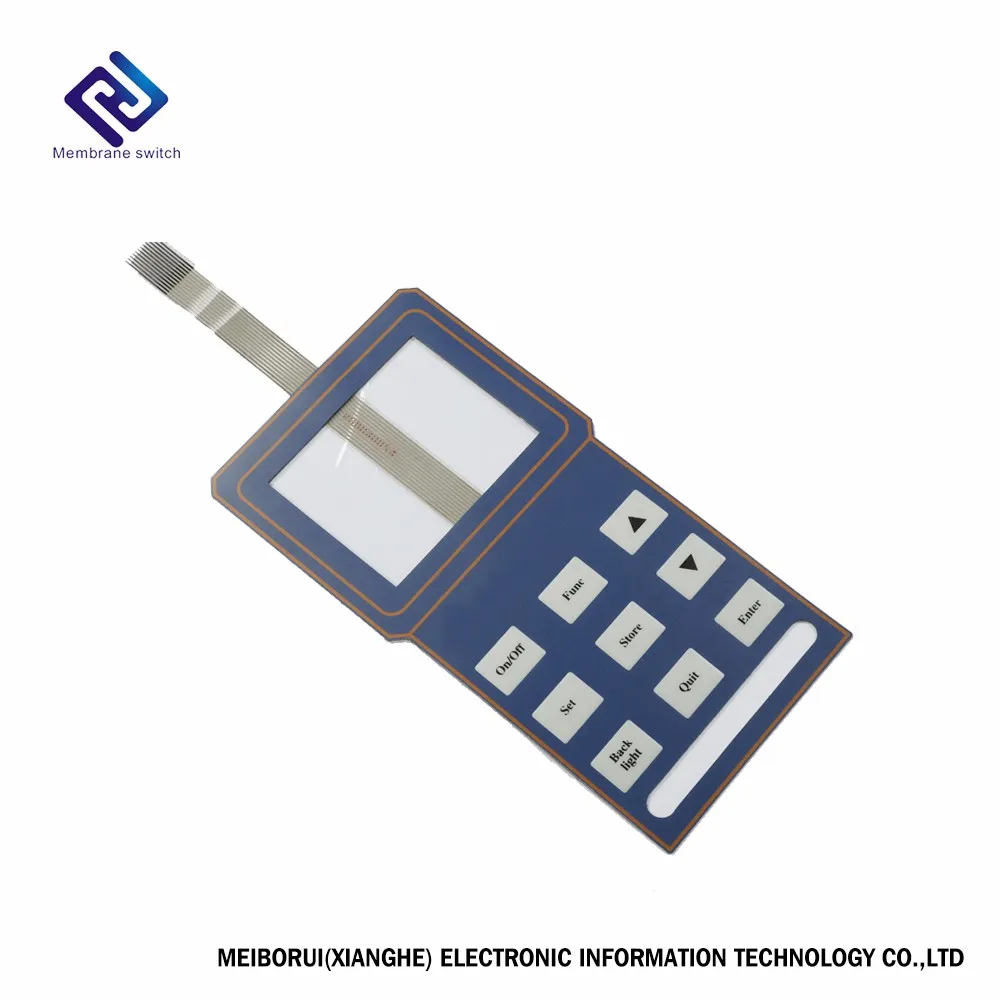

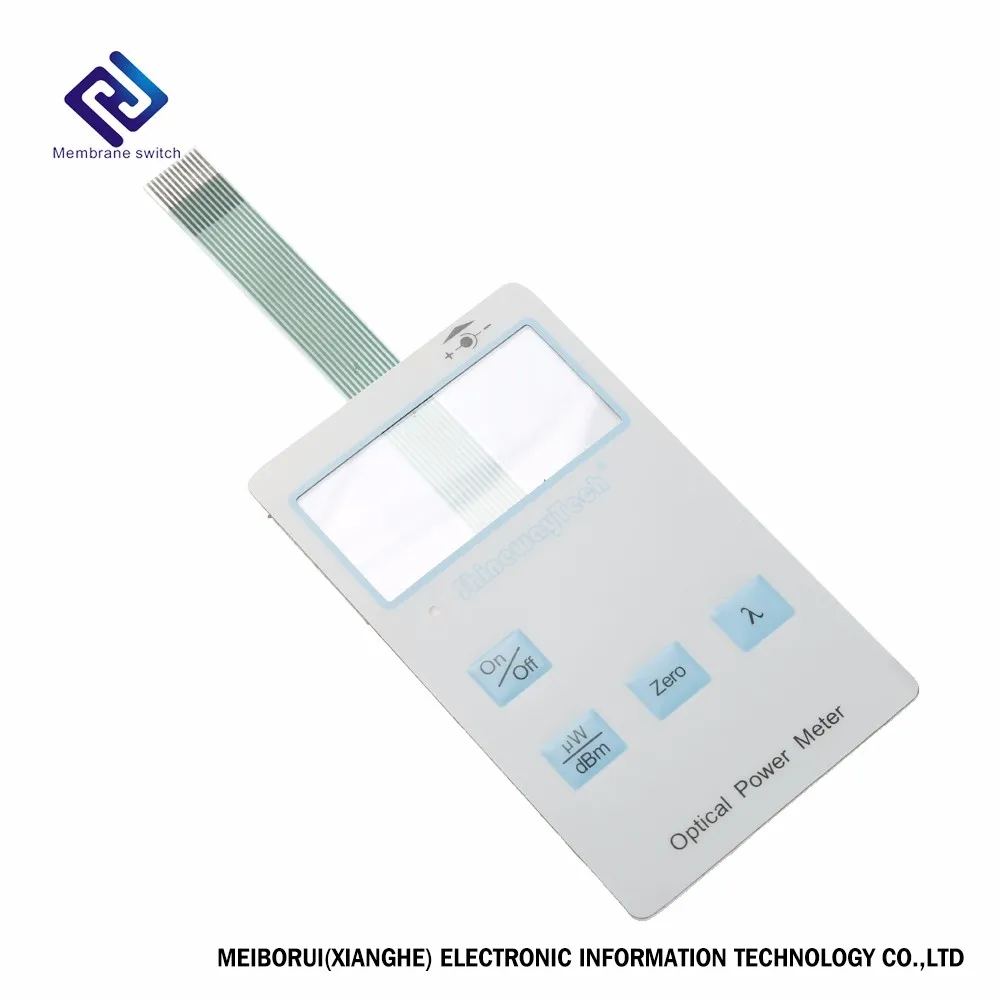

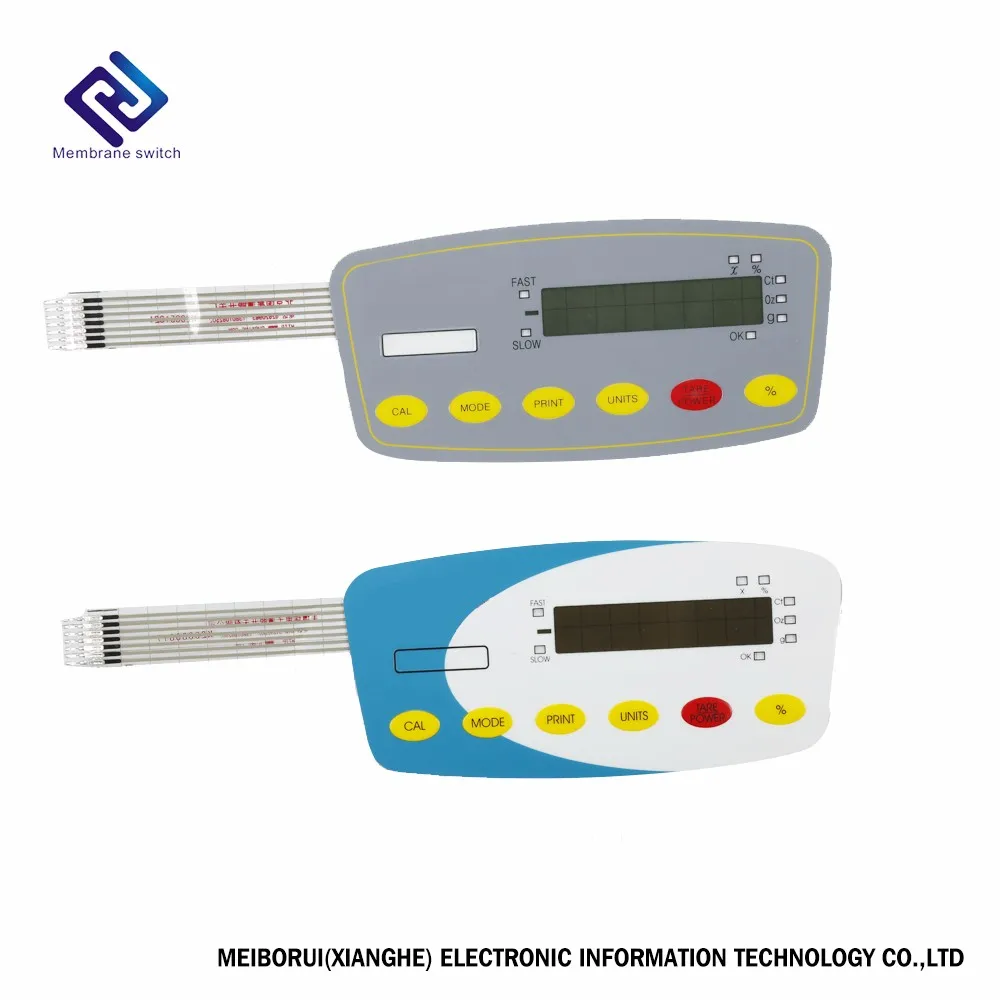

Custom Membrane Switch Keycaps Membrane Keyboard PC Overlay

FOB Reference Price:Get Latest Price
$0.35 - $1.55 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
MBR-V463
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PC
Material:
PET/PC
Color:
Pantone
Certification:
ISO9001:2015 SGS
Printing:
Silkscreen Printing or Digital Printing
Size:
Customized Size Accepted
Life Expectancy:
Flattype>1 Million Times
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Feature:
Waterproof
Key Option:
Flat or Embossed
Dome:
Metal dome/Poly dome
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Product description

1.Over 27 years of experience in membrane switch design and manufacturing.
2.Certified to ISO 9001 and SGS.
3.Manufacturing and design engineer is enough. They accounts for above ten percent of the total.

1
Material
PET(polyester) ,PC(polycarbonate)
2
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
3
Embossing
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes
2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
4
Color
Pantone and RALcolor matching system.
5
Keys Options
1.For a tactile response and indicate the location of switches
2. Tactile Keys: metal domes or poly domes
3. Non-tactile keys: flat button, printed silver spot on the circuit
6
Printing Type
screen printing or digital printing.
7
Circuitry option
1. Silver printed conductive inks
2. Copper etched circuit /Polyimide Kapton circuit ( FPC)
3.PCB circcuit board
8
Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch

Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Transparent Windows, Touch Screen, Drop Gum,Glass Cover, Embossing, Embedded LED/LGF, UV glossy/matte/textured, backlingt, with support back panel etc.


The main properties of custom design membrane switch
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, water-proof, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.

Materials:

The most widely used materials are polycarbonate and polyester.
Polyester(PET) :
Highly versatile for embossing
Highly resistant to chemicals
Better durability
For internal and external use
Polycarbonate(PC) :
Wide range of surface finishes and thicknesses
More cost-effective
For internal and external us
The material loses its chemical resistance if embossed.

Finishes:

Gloss :
It Is very similar to glass
Easy to clean
Allows for the use of clear windows
Textured :
Print and scratch resistant
Available in different glosses, from semi-gloss to matte
Available in a variety of finishes (suede, velvet, brushed, etc.)

Application:

Our Company

MeiBoRui(MBR)--membrane switch keypad/graphic overlay
MeiBoRui(MBR) can offer both non-tactile and tactile switches in a range of forces that can be combined either with a customized graphic overlay or a silicon keypad. We can customize the final solution to incorporate:
 • PCB or flexible PCB – incorporate your membrane switch onto a
   PCB for ease of connection and to reduce the cost of
   a separate control board.
 • Metal or plastic back panels – Increase the rigidity of
   the membrane and allows for ease of assembly to a casing.
 • Backlighting – Selective or indicator backlighting by placing SMD
   inside the membrane
 • Integrated Electronics – incorporate metal domes, LED's,
   connectors into your membrane panels.
 • Shielding – To meet your ESD, EMI or RFI requirements
 • Integration with touchscreens – Add membrane switch keys to
   supplement your touchscreen product


Related Products

Digital Printing Membrane Graphic Overlay Panel Membrane Keypad Switch

PET Thin Film Light Switch Touch Screen Keyboard Membrane Panel

PET Backlight Membrane Control Panel Housing Keyboard Switch

Packing&Delivery

Packing

Packaging Details:1.paper carton for flexible membrane switch (outer)

                                    2.Plastic bubble bag for tactile membrane keyboard (inner) .

Delivery

The sample time was 1-7days
Small order :7-14days
Big order:14-21days


Certifications

15 Years Experience

Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.

Enjoy High Reputation

Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

The Member of Alibaba Trust Pass

Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market's recognition.

Our Service


1. We can quote competitive price with good quality products.
2. Reply within 12hours.
3. Short delivery time.
4.Good packing to avoid any shipping problems.
5. Small order is accepted.
6.Provide OEM/ODM service.


FAQ

1. What about the sample policy?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a

quotation.

2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks

3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit  designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.

4. What information you need for quotation?
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button Embossed Or Flat
Button No. :3
LED No. :
Pin:
Pitch:2.54mm
Cable Length:30mm
Connector: Female /Male/DoPont Connector
Hole: None
5.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions
