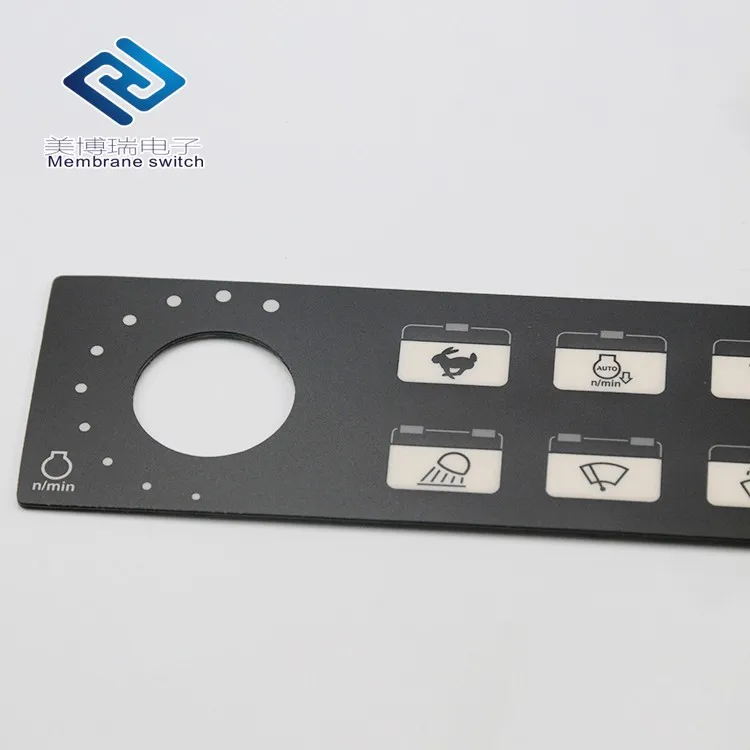

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

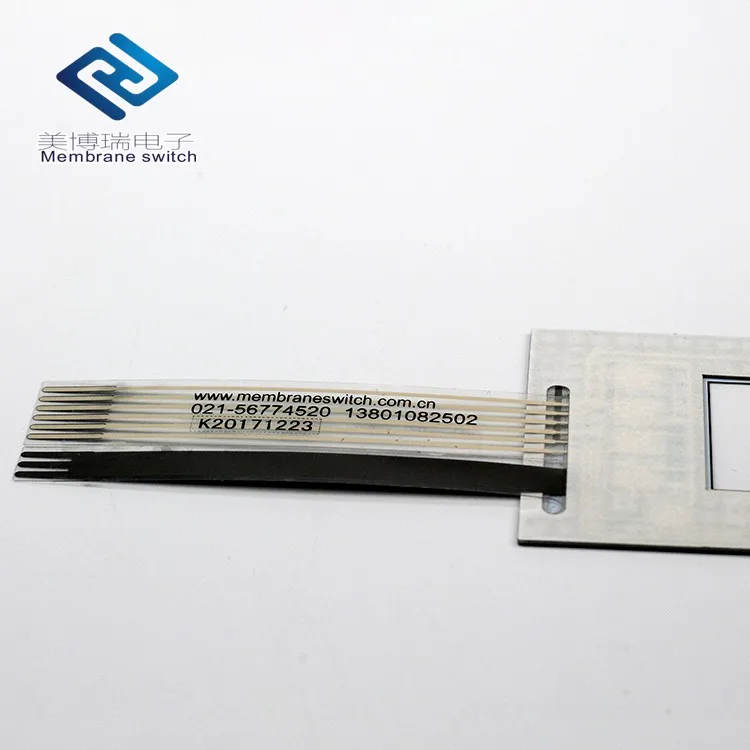

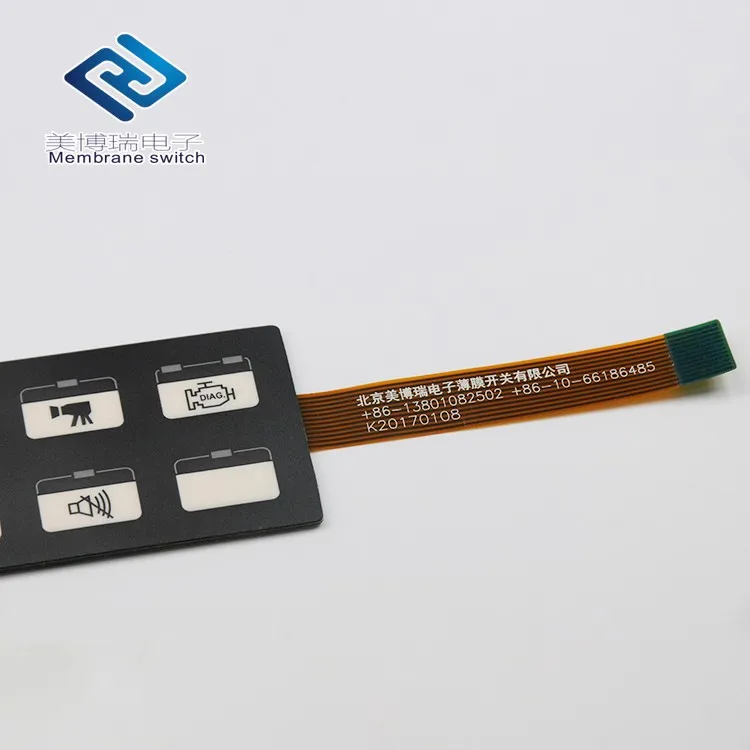

5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.
Waterproof Membrane Keyboard Keypad Nintendo Switch with Embossed Button
Manufacturer of Printed Circuit Boards Membrane Switch Control Panelr
OEM Membrane Panel Nintendo Switch Keyboard Graphic Overlay
MeiBoRui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.
Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.
In China, we have two factories. Nowadays, many large European enterprises are our partner. If you are searching for membrane switch manufacturer from China, we are the best choice with the lowest price, the best quality and state of the art technology.
15 Years Experience
Since 2002, MeiBoRui was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.
Enjoy High Reputation
Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.
The Member of Alibaba Trust Pass
Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market’s recognition.
Payment & Shipping Term
Packaging Details:PE bag, Carton, Wooden crate Delivery Time:5-10 days Payment Terms:T/T, West Union
The sample time was 1-3days Small order :5-7days Big order:10-20days
1、What is your terms of delivery? Mainly by air. 2、What is your sample policy? We will provide free sample, but buyer need pay for the freight and taxes. 3、How can I buy this product? You can contact us on the internet or call to us. 4、How to guarantee the after sales service? Our company already passed the SGS authoritative certification. We will get the most guarantee the buyer’s profit. If any quality problem happened, we will provide returning and exchanging goods service. Most professional sales team will serve for you.
