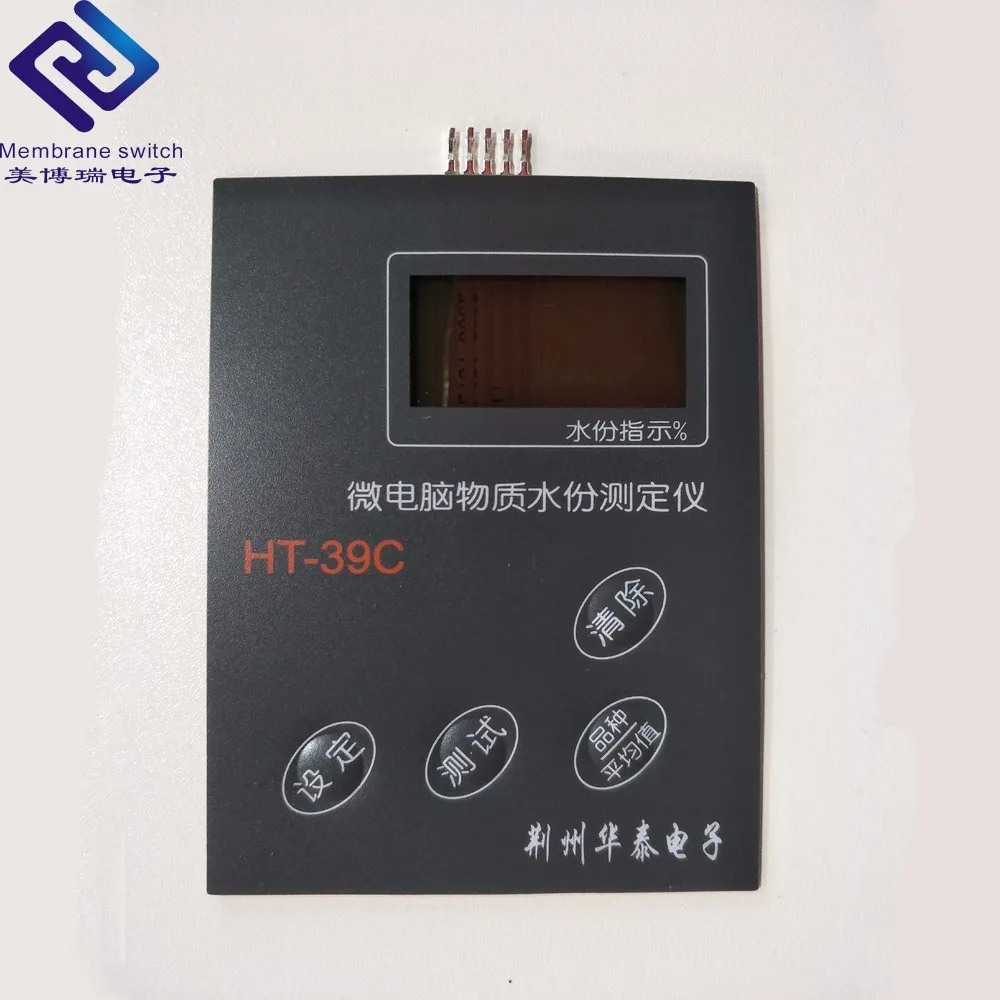

PET Embossed Button Tactile Front Panel Membrane Overlay Electronic Keyboard With Flexible Circuit
Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

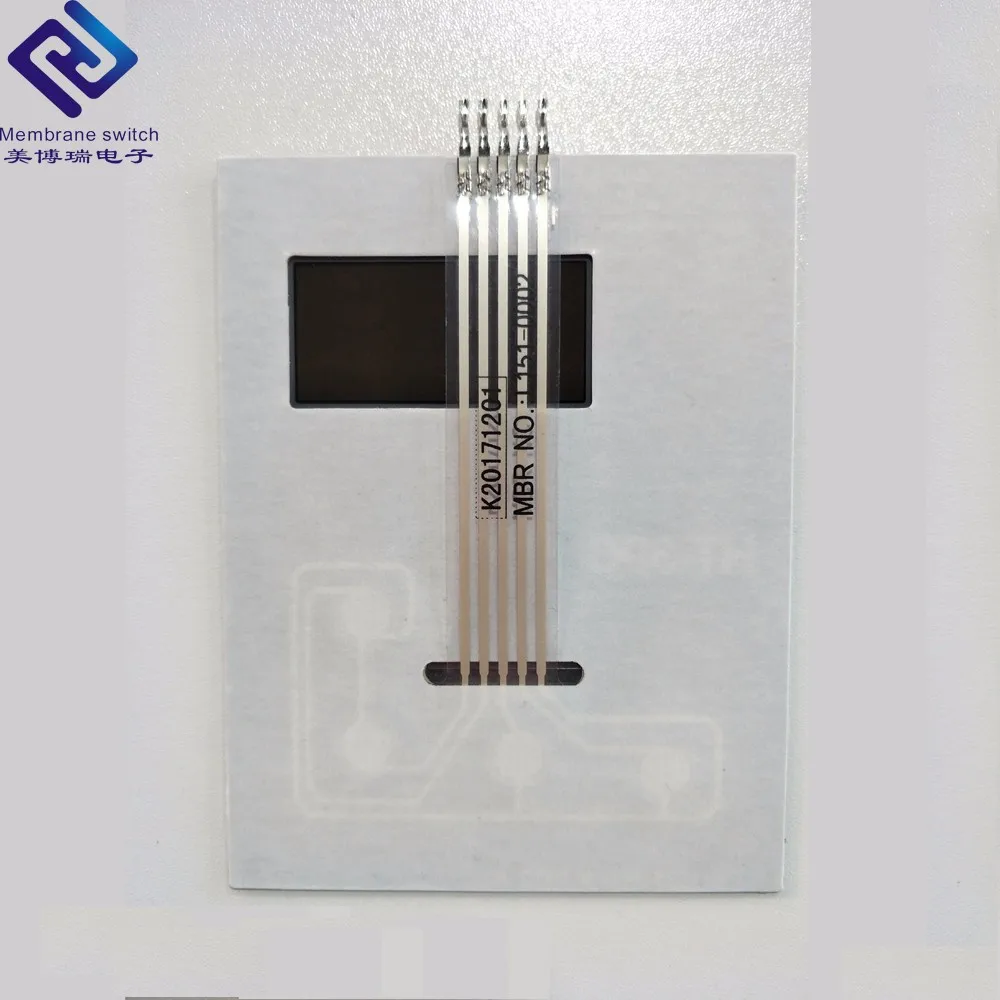

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires. 2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth. 3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes. 4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides. 5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics. 6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.
Customized poly dome keypad button tactile membrane switch with 3M adhesive
Industrial Metal Dome Embossed Membrane Switch Panel
Custom metal snap dome membrane keypad button remote cotrol keyboard

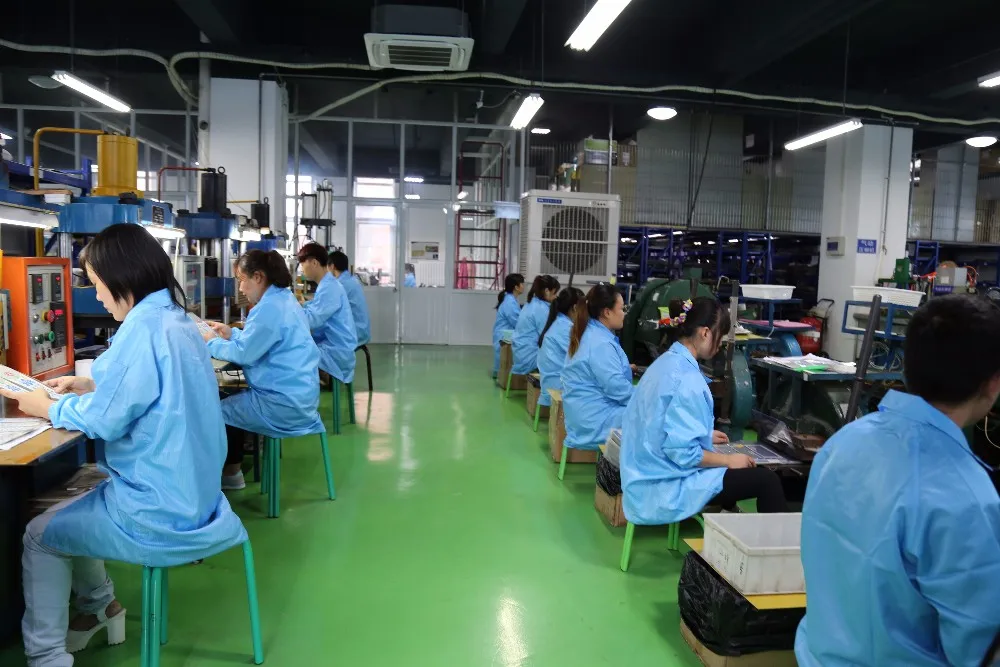

Meiborui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2800 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan. Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field. The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.
GB/T19001-2016/ISO9001-2015 Our products has passed the quality management system certification.
ALIBABA/SGS Obtain SGS certification from alibaba international supplier
Enjoy High Reputation Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province
15 Years Experience Honesty is the basic of corporate. Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field
Packing & Delivery
Payment & Shipping Term Minimum Order Quantity:10pieces Packaging Details:PE bag, Carton, Wooden crate Delivery Time:5-20 days Payment Terms:T/T Western Union Paypal Supply Ability:100000 pieces per Month
the sample time was 1-3days small order :5-7days big order:10-20days
1.How can i get a sample to check your sample? After price confirmation, you can require for samples to check our quality. If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ. 2. How long can I expect to get the sample? After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account. 3. What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks. 4.what kind of transportation do you offer? Express such as UPS TNT DHL etc......
