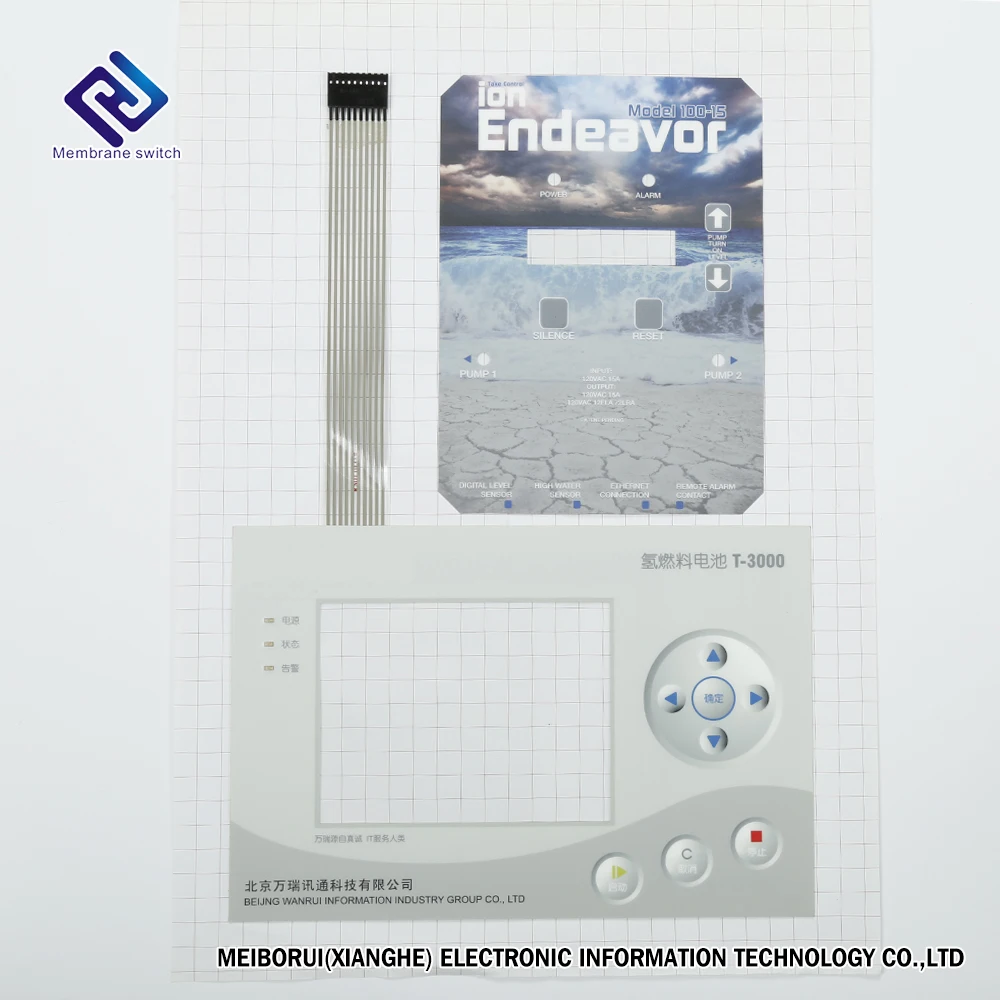

Embossed Membrane Switch Custom Membrane keypad

FOB Reference Price:Get Latest Price
US $0.65-0.99 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
MBR - V006
Application:
Telecommunication Equipment
Keypad Button Material:
PC/PET
Material:
PET PC
Certification:
ISO9001:2015
Color:
Pantone
Size:
Customized Size Accepted
Life Expectancy:
Tactile Type: 100 Million Times
Feature:
Water-proof
Printing:
Silk Screen Printing
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50pcs in a polybag 300pcs in a carton
GW: 15.5kgs
Carton Size: 40x35x30cm
Port
Beijing
Lead Time :
5-10 days
Product Description



1

Material

PET(polyester) ,PC(polycarbonate)

Components

LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.

3

Color

Pantone and RALcolor matching system.

4

Embossing

 raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes





Embossed type: Pillow emboss, Dome emboss, Frame emboss

5

Keys Options

For a tactile response and indicate the location of switches





1. Tactile Keys: metal domes or poly domes





2.   Non-tactile keys: flat button,   printed silver spot on the circuit,

6

Circuitry option

1. Silver printed conductive inks



2. Copper etched circuit /Polyimide Kapton circuit ( FPC)





3.PCB circcuit board

7

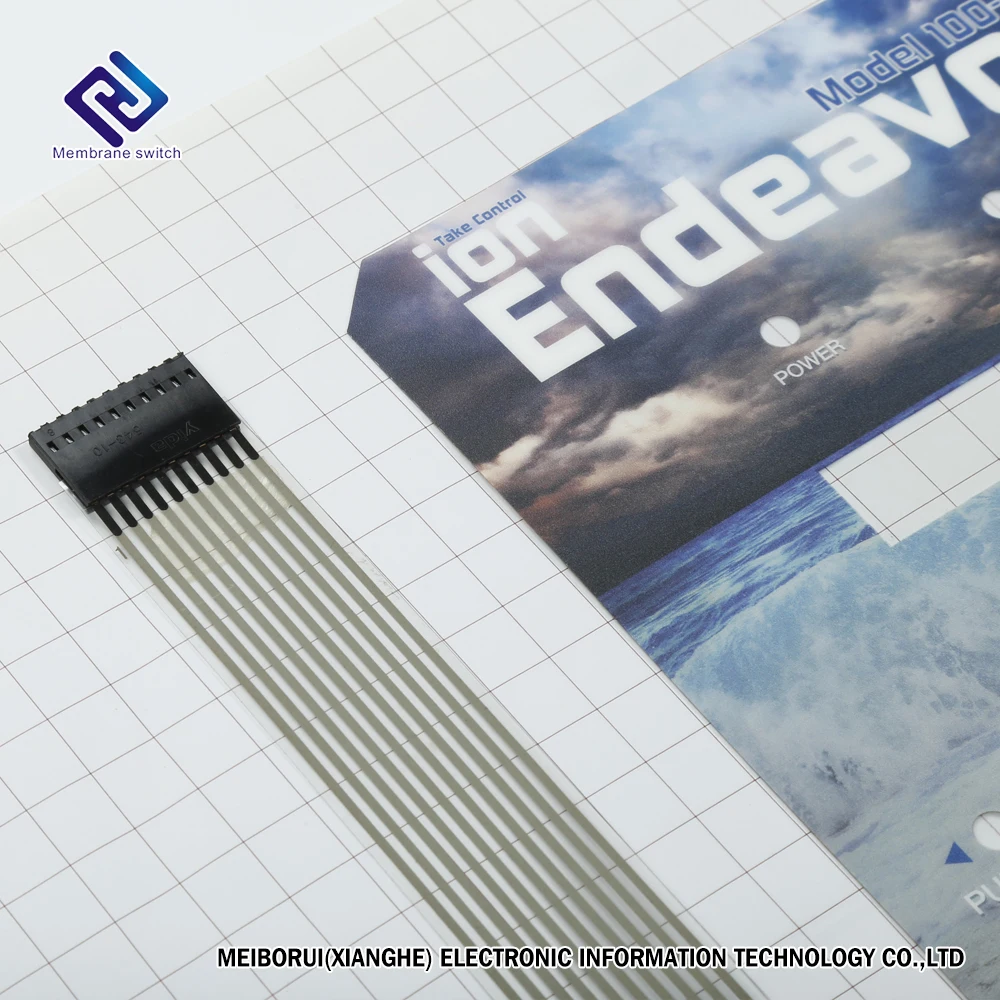

Connector Tail

1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch





2. Female connector with 2.54MM pitch;



Our Services





MEIBORUI was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.

Applications:
* Medical equipment
* Telecommunications apparatus
* Military industries
* Household appliances
* Security systems
* Industrial controls
