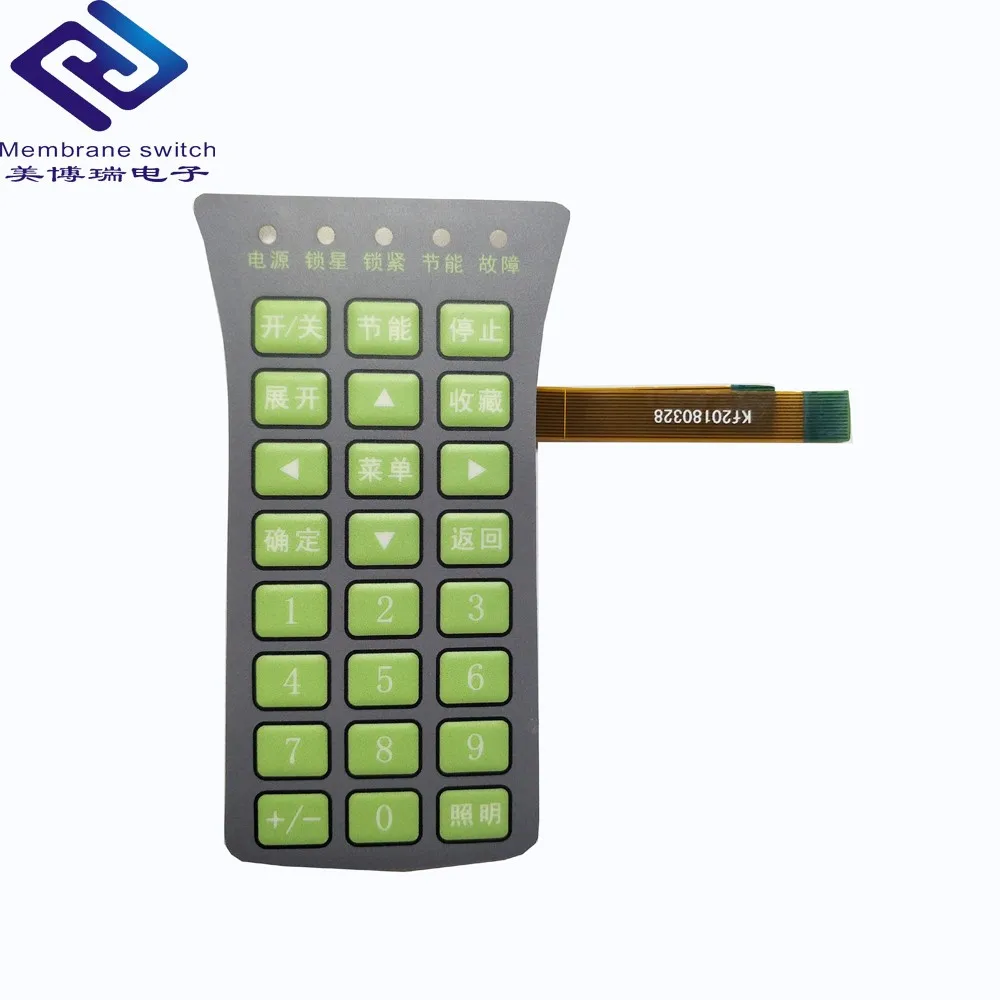

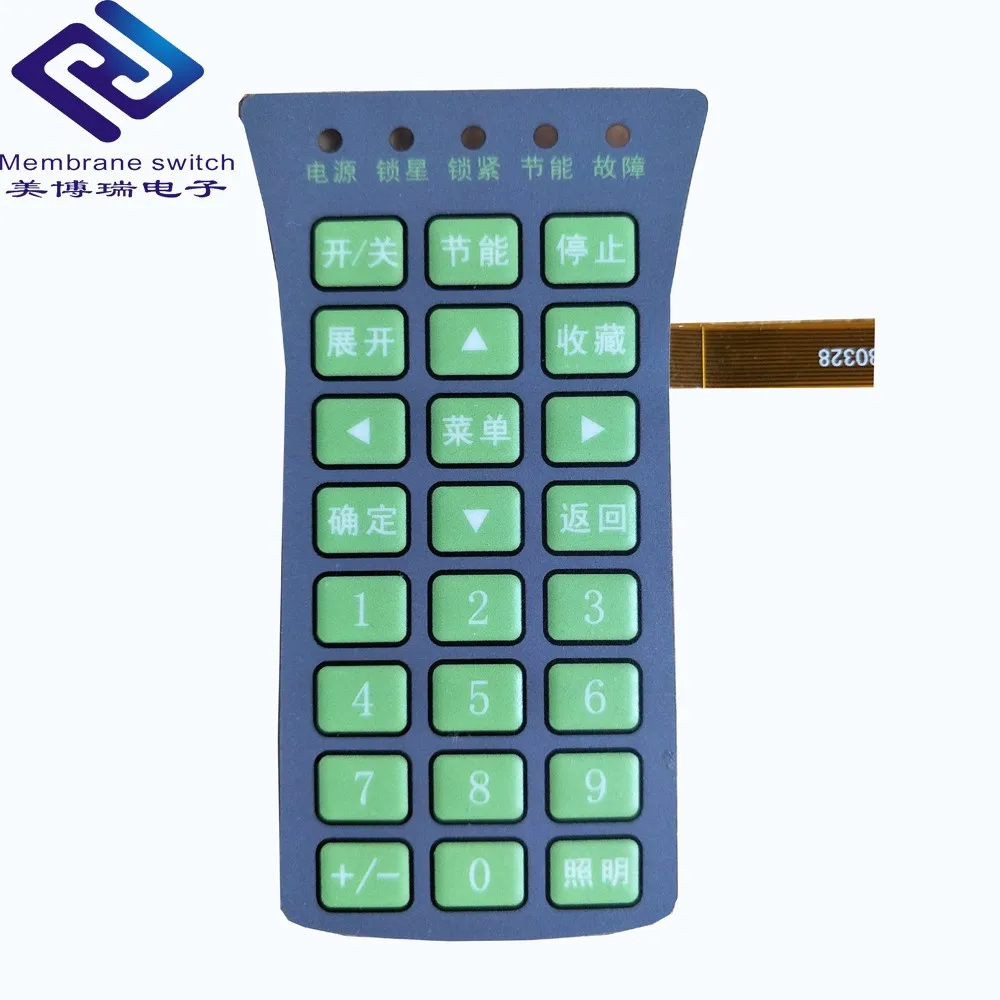

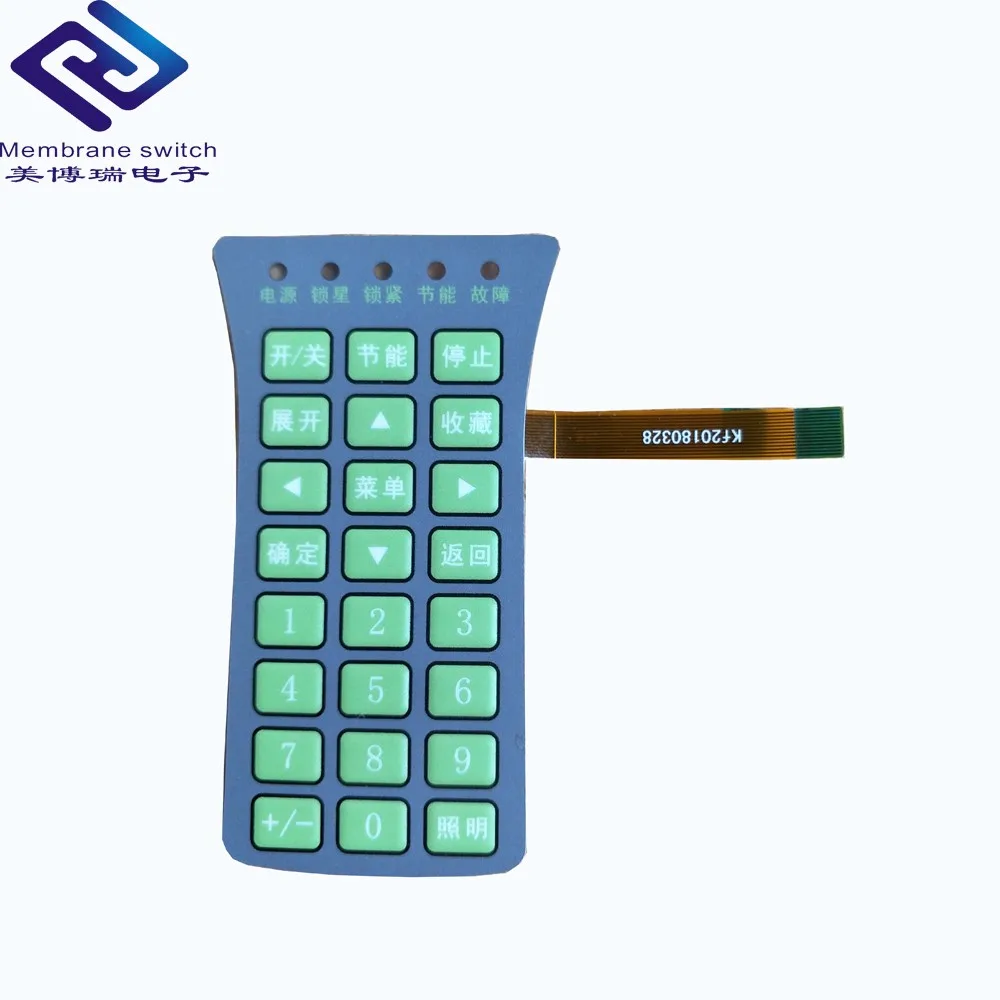

High quality waterproof Custom plastic dome push button membrane switch keypad

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Samples - $1.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Name:
waterproof Custom plastic dome push button membrane switch keypad
Feature:
Water-proof
Back adhesive:
3M467,3M468
Certification:
ISO9001:2015
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Color:
Pantone or Ral Color
Printing:
Silk Screen Printing
Surface:
Matte/Glossy
Type:
Meet Customer's Demand
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Port
Tianjin
Product Description
Overlay
PC 0.175MM/PET F150,V200
Spacer
PET Spacer 0.1MM
Top Circuit
Dopunt PET 0.1MM
Spacer
PET Spacer 0.2MM
Button Circuit
Dopunt PET 0.1MM
Adhesive
3M468 0.13MM

Components

1,with metal dome tactile button

2,with digital printing overlay panl

3,with flex cable

4,with 2.54mm female connector

5,LED ,Transparent Window is available

6,Adhesive.3M Glue

PC,PET Circuit 3M Glue Keypad Button Material Custom Membrane Switch

Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

Part
Raw Material
Graphic Overlay
Finish of surface
Pacification
PC
Glossy
 0.175/.25/.35 mm
Matte
0.175/.25/.35 mm
PET
Fine Texture
0.15/.20mm
Valvet Texture
Valvet Texture
Gloss with Hard Coat
0.180mm
Rear Adhesive
3M Glue
0.13mm
Related Products

Waterproof Push Button Capacitive Tact LED Membrane Touch Switch Keypad With Graphic Overlay

matrix membrane switch with shielding layer tactile membrane numeric keypad


professional manufacturer custom membrane switch design with high technology

Certifications

    Quality Certificate:ISO 9001-2015

                          ROHS SGS Certificate

Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

Technology Process
Packing & Delivery

Packing

Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:12-15 days
Payment Terms:T/T, West Union, Paypal
Supply Ability:100000 pieces per Month

Delivery


FAQ

1.How can i get a sample to check your sample?

After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4.what kind of transportation do you offer?

Express such as UPS TNT DHL etc......
