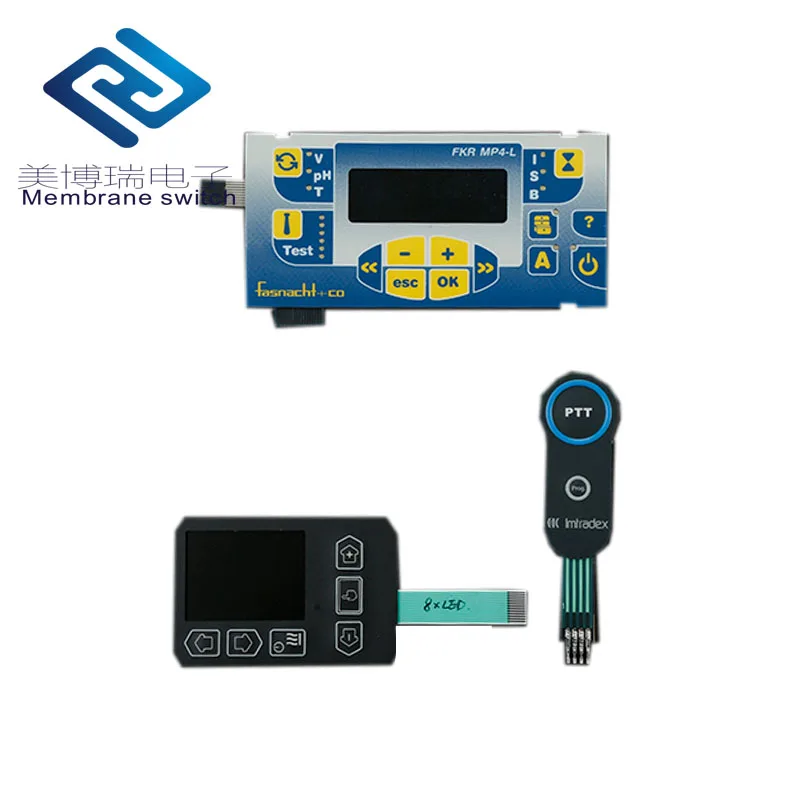

Technical Function push button led membrane switch

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Meiborui
Model Number:
MBR-YXX074
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PC
Color:
Pantone
Certification:
ISO9001
Size:
Customized Size
Material:
PET/PC
Feature:
Water-proof
Printing:
Digital Printing
Rear adhesive:
3m467/468/9080A/9448A
Usage:
OEM Electronics
Connector:
2.54 Female Connector
Emboss type:
Pillow
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50pcs in a polybag
300pcs in a carton
GW: 15.5kgs
Carton Size: 40x35x30cm
Port
Beijing
Products

A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit. The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.

Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.


Membrane switches can be manufactured with non-tactile switches, which activate with 4 – 8 oz of touch pressure. Non-tactile switches are less expensive and provide the longest switch life. Tactile switches have a snap-action feel and may also be incorporated into a membrane switch, enhancing tactile feedback, but with a greater cost and lower switch life.

Spercifications for Meiborui Products
Embossing
Gloss / Clear, Matte/Texture, Fine, Velvet
Key Options
For a tactile response and indicate the location of switches
1. Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit

Base:
-rigid pcb-based:
    A. Single-sided, double-sided, and multi-layer designs
    B. Plating options: tin-lead, nickel, gold
    C. Tactile, non-tactile
    D. with metal/ polyester tactile domes
    E. Pillow or rim-embossed graphic overlays
    F. Adding LEDs and other components
    G. Graphic overlays that can be digitally printed, screen printed, or both

-fpc based:
   -silver flex
   -copper flex
Features
Waterproof, with tactile feeling, dust resistance, Backlight, LED embedded

Special Printing Effects: fades, gradients, photographic-quality images, custom spot colors

Unlimited Color Choices: metallic silver, metallic gold, copper, bronze...

Components
LED, metal dome, diode, connector and circuit...

All these can be designed and made according to customer requirements.
Adhesive Tape
3M 468/467/9080/55260/9448/9672/9495/4920/4930/5604/9731
Nikto 8019/8029/8209/89525
Lohmann 9702
Tesa 4967
...
Overlay Material:
PET: Auto-type
Autotex F150, F200, F280, V150, V200, V280, XEV150, XEF200
Autoflex EBG130, EBG180, EBG250, EBA130, EBA130, EBA250
Autostat CT3, CT4, CT5, CT7
DuPont etc.

PC: GE LEXAN-8010 8B35 8B35F HP92S HP40 FR700 FR60

Connector Tail
1.Zero insertion force (ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch;
......
...

Services

●Prompt reply (trading team serves all day)

●Prefessional design (supported by a strong engineer team)

●Customer-oriented (focusing on customer needs and expectations)


Detailed Images
Certifications
Packaging & Delivery

Security and Speedy

For small orders, shipping by express, e.g. DHL, FEDEX, UPS...

Packaging Details
50pcs in a polybag
300pcs in a carton
GW: 15.5kgs
Carton Size: 40x35x30cm

Well-sealed products are ensured.

Delivery Time: 5-10 days
