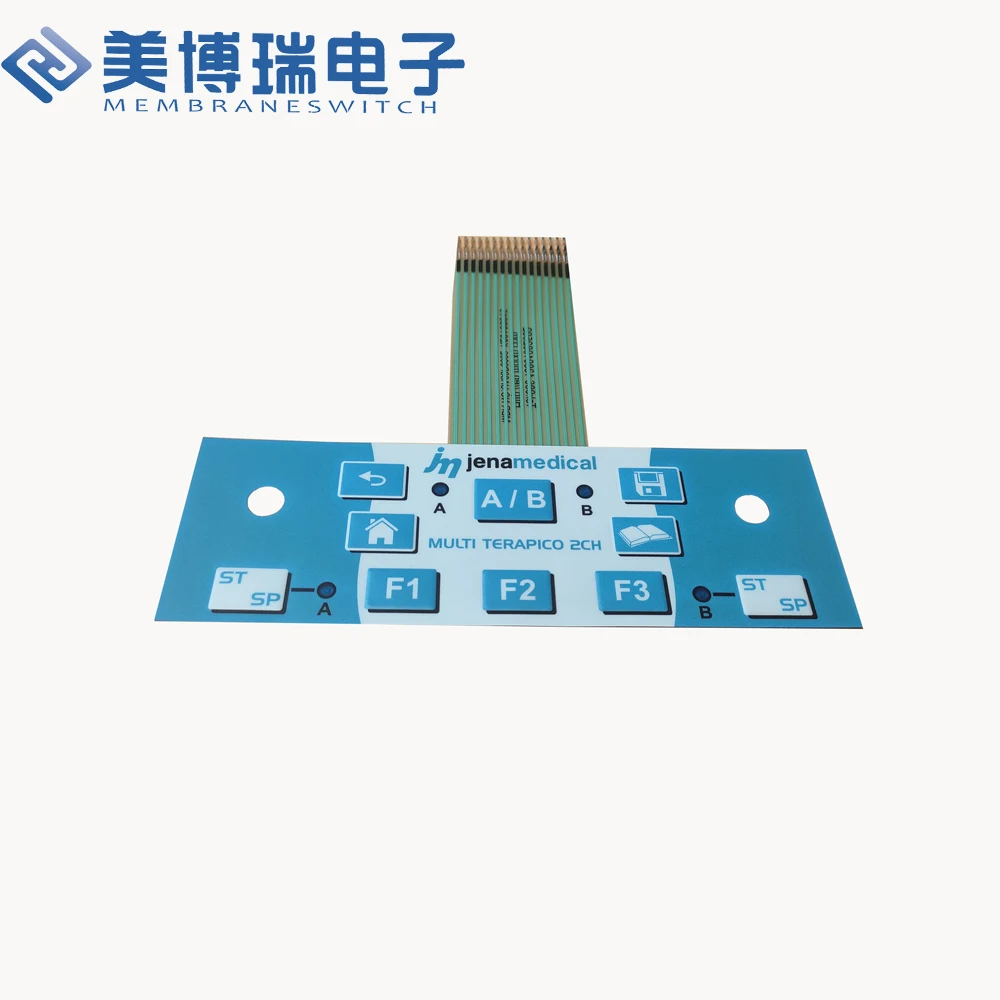

Custom prototype membrane keycaps/keypad with 3M adhesive

FOB Reference Price:Get Latest Price
$0.11 - $1.11 / Pieces | 10 Piece/Pieces (Min. Order)
Samples - $1.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
MBR-V118
Application:
electronic equipment
Keypad Button Material:
PET/PC
Material:
PET/PC
Color:
Pantone or RAL
Certification:
ISO9001:2015 SGS
Printing:
Silk Screen Printing
Feature:
Long Service Life
Type:
Adhesive Sticker
Membrane switch:
Control System
Size:
Customized Size Accepted
Life Expectancy:
1 Million Times
Adhesive:
3M467/468MP/200MP/9080AMP/55280MP
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Video Description
Product description
Overlay Materials
The most commonly used base materials are autotype polyester and polycarbonate.
Rear Adhesive
 3M 467MP, 3M 468MP ,and other double side adhesive  ; foam adhesive
Connector
2.54 female connector or male connector,2.54 bending pin connector,solder pin ,1mm ZIF connector
Window
die cutting window,clear window ,colored window.
LED
single or two tone LED can be embedded
Matching color
Pantone and RAL color matching system.
Printing Type
screen printing or digital printing.
Standard Tolerances
+/-.010 inch.(+/-0.2mm)
Thickness
0.4-1.2mm
circuit layout
silver printed conductive circuit,FPC
subject to customers detailed requests,customized design accept

MeiBoRui is a custom manufacturer of electronic identification products which include nameplates, decals, graphic overlays, and membrane switches.
Our capabilities include digital printing, automatic and semi-automatic screen printing, prototyping,

inspection, production assembly, in circuit and functional testing, RF/EMI shielding, embossing, texturing, hard coating, graphic design and development assistance, top and sub surface printing. Tactile, non-tactile, poly dome, embedded LED's, and backlit graphics are available along with multiple termination options.

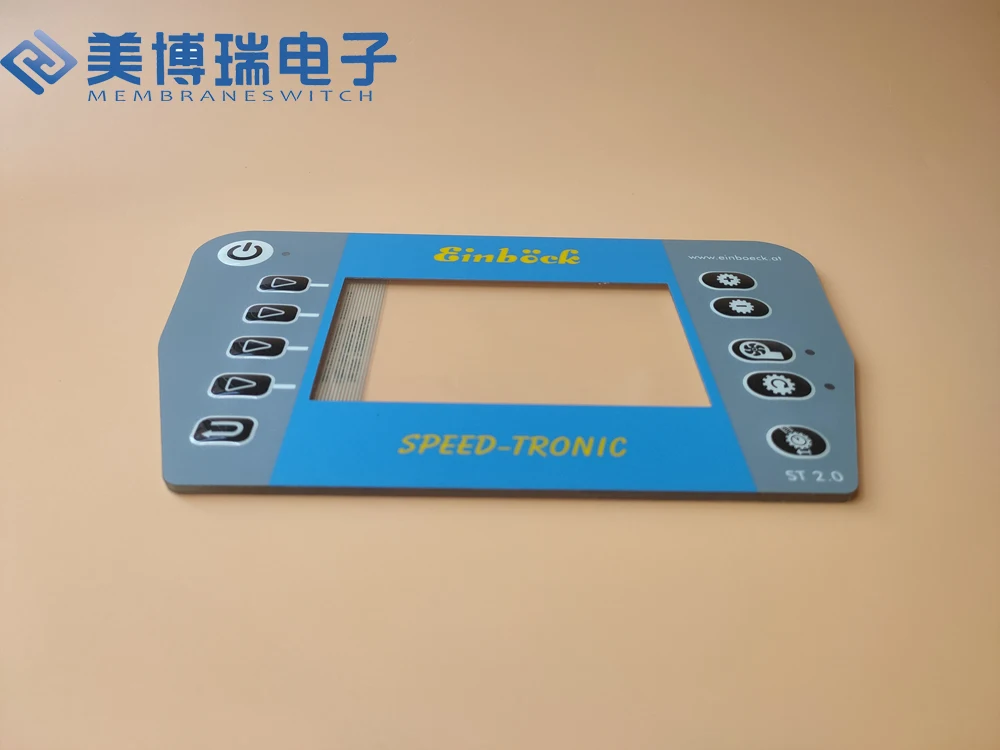

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires

2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.

3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.

4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

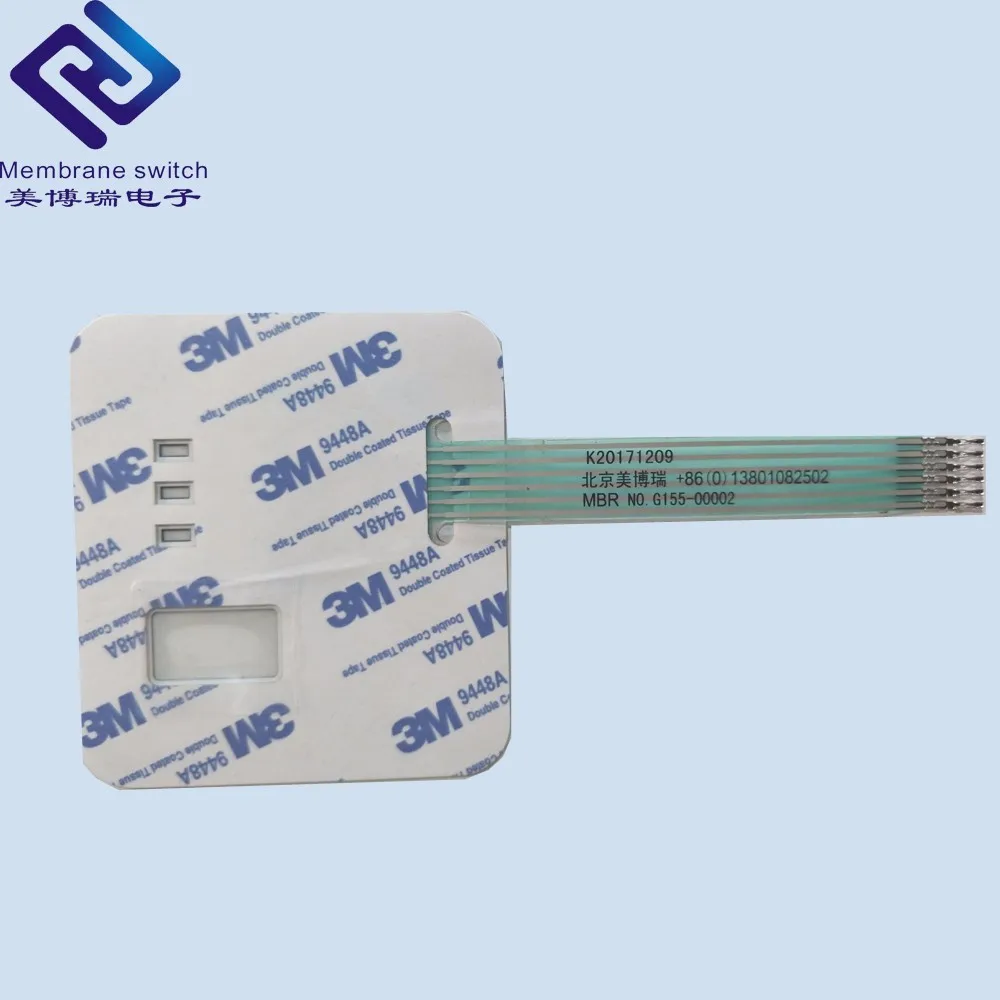

6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.

Our Company

MEIBORUI was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.

Applications:
* Medical equipment
* Telecommunications apparatus
* Military industries
* Household appliances
* Security systems
* Industrial controls

Packing&Delivery

Packing

Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T, West Union
Supply Ability:100000 pieces per Month

Delivery

The sample time was 1-3days
Small order :5-7days
Big order:10-20days


FAQ

1. What about the sample policy?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.

2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks

3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit  designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.

4. What information you need for quotation?
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button Embossed Or Flat
Button No. :3
LED No. :
Pin:
Pitch:2.54mm
Cable Length:30mm
Connector: Female /Male/DoPont Connector
Hole: None
5.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions

Certifications

15 Years Experience

Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.

Enjoy High Reputation

Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

The Member of Alibaba Trust Pass

Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market’s recognition.
