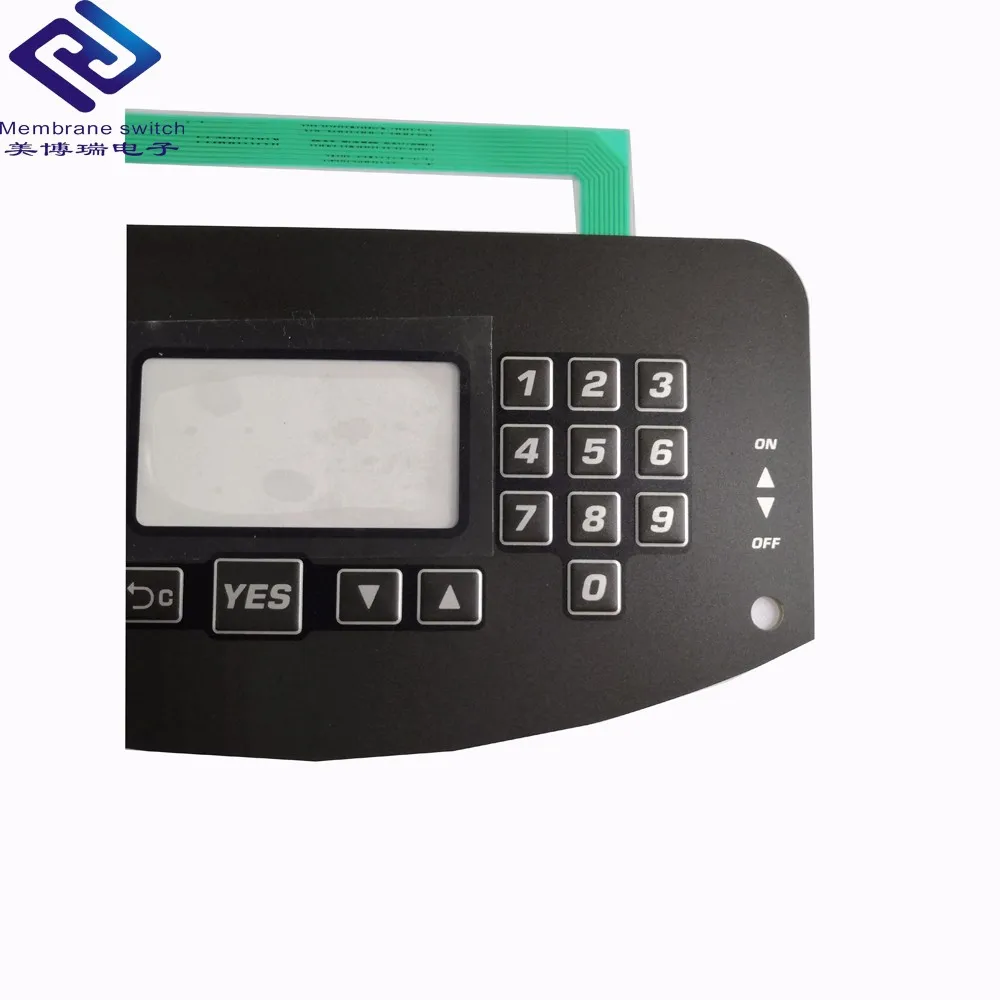

OEM Factory custom pcb membrane switch push button membrane switch panel

FOB Reference Price:Get Latest Price
$0.59 - $5.59 / Piece | 10 Piece/Pieces (Min. Order)
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Model Number:
Membrane Switch
Telecommunication Equipment
Keypad Button Material:
polyester, polycarbonate
custom pcb membrane switch push button membrane switch panel
LED, metal dome, connector and circuite
polyester, polycarbonate
Pantone and RALcolor matching system
metal dome/poly dome
flexible,custom cable length,track pitch
2.54mm female connector or 1mm ZIF connector
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Product Description

At Meiborui, we specialized in manufacturing membrane switch solutions with demanding reliability and stringent cosmetic requirements.  We are proud to be industry leaders in producing membrane switches that meet or exceed our customers’ expectations.  Our Meiborui based state-of-the-art manufacturing facility supports a variety of processes to bring you the best custom membrane switches in the market today.  Some of the processes include: screen and digital printing, color matching, die cutting and laser fabrication, laminating processes, clean-room membrane switch assembly, as well as environmental and life cycle testing.

PC 0.175MM/PET F150,V200
PET Spacer 0.1MM
Top circuit
Dopunt PET 0.1MM
PET Spacer 0.2MM
Bottom circuit
Dopunt PET 0.1MM
3M468 0.13MM


1,with metal dome tactile button
2,with digital printing overlay panl
3,with flex cable
4,with 2.54mm female connector
5,LED ,Transparent Window is available
6,Adhesive.3M Glue

Custom Membrane Keypad Solutions & Features

1.Pillow or rim-embossed keys and graphics
2.Metal dome switches and poly dome tactile membrane switch assemblies
3.Flat switch or non-tactile membrane switches
4.Backlighting of membrane keypad switch
5.Environmentally sealed membrane keypad assembly
6.Etched copper on Kapton flex circuitry or printed silver circuit
7.Latest dome technology for tactility
8.Integrated transparent or smoked windows
9.Thin and low profile

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2.Overlay Adhesive
– This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.
3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.
4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.

Related Products

push button membrane switches with connectors

membrane switch with transparent window

membrane switch with LCD

Our Company
MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.

Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.

The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.

We have two factories in China . Nowadays, many famous European enterprises are working with us. If you are searching for a reliable and successful membrane switch manufacturer in China, we are the best choice which with the best quality, the lowest price and state of the art technology. You are welcome to buy directly from us and cut out the middlemen.


Our products has passed the quality management system certification.

Obtain SGS certification from alibaba international supplier

Enjoy High Reputation
Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province

15 Years Experience
Honesty is the basic of corporate. Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field

Packing & Delivery


Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-20 days
Payment Terms:T/T Wset Union

10000 pieces per Month



1.How can i get a sample to check your sample?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4.what kind of transportation do you offer?
Express such as UPS TNT DHL etc......
