Embossing metal dome membrane keypad keyboard used for instrumentation equipment

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
name:
Embossing metal dome membrane keypad keyboard
Feature:
Water-proof

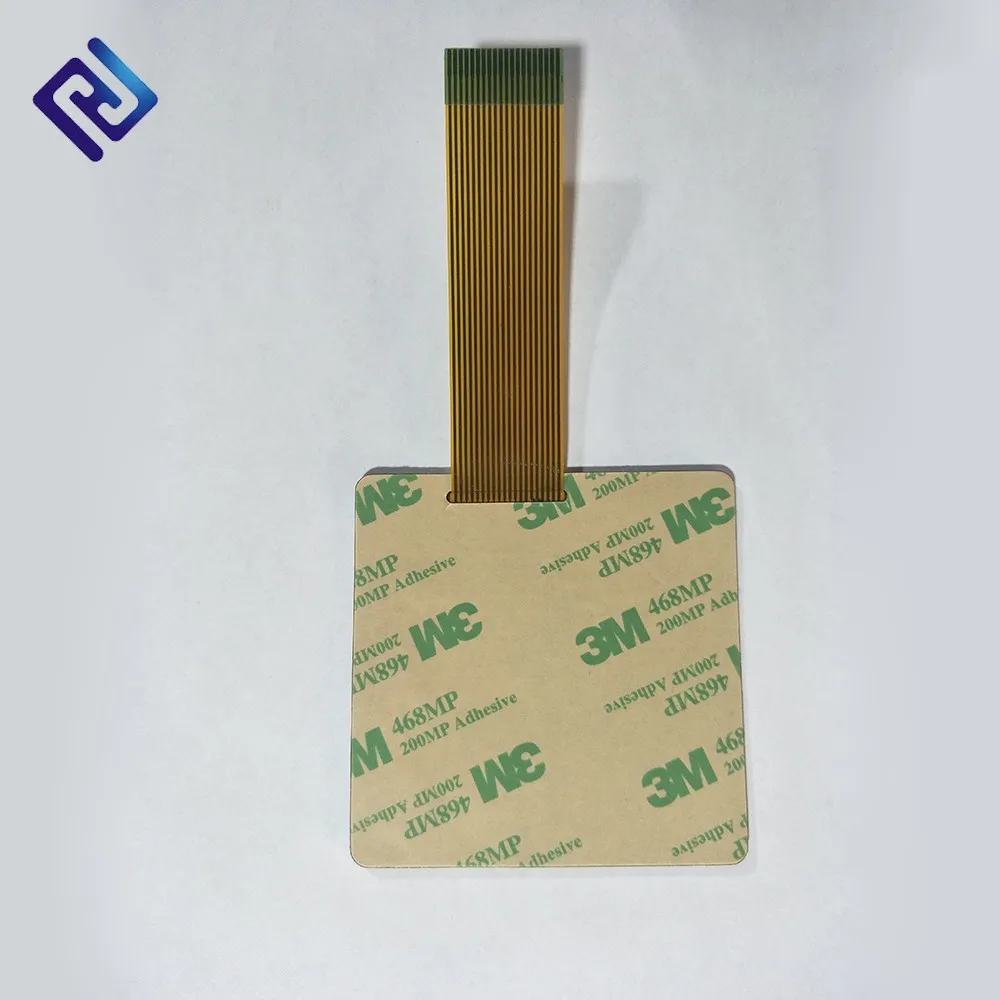

Back adhesive:
3M467,3M468
Dome:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Color:
Pantone or Ral Color
Circuit:
printing silver ink on PET material
Printing:
Screen Printing and 3D digital pringting
Connector:
2.54mm female connector or 1mm ZIF connector
Key option:
Touch button
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Port
Tianjin
Lead Time :
within 5-20days
Product Description

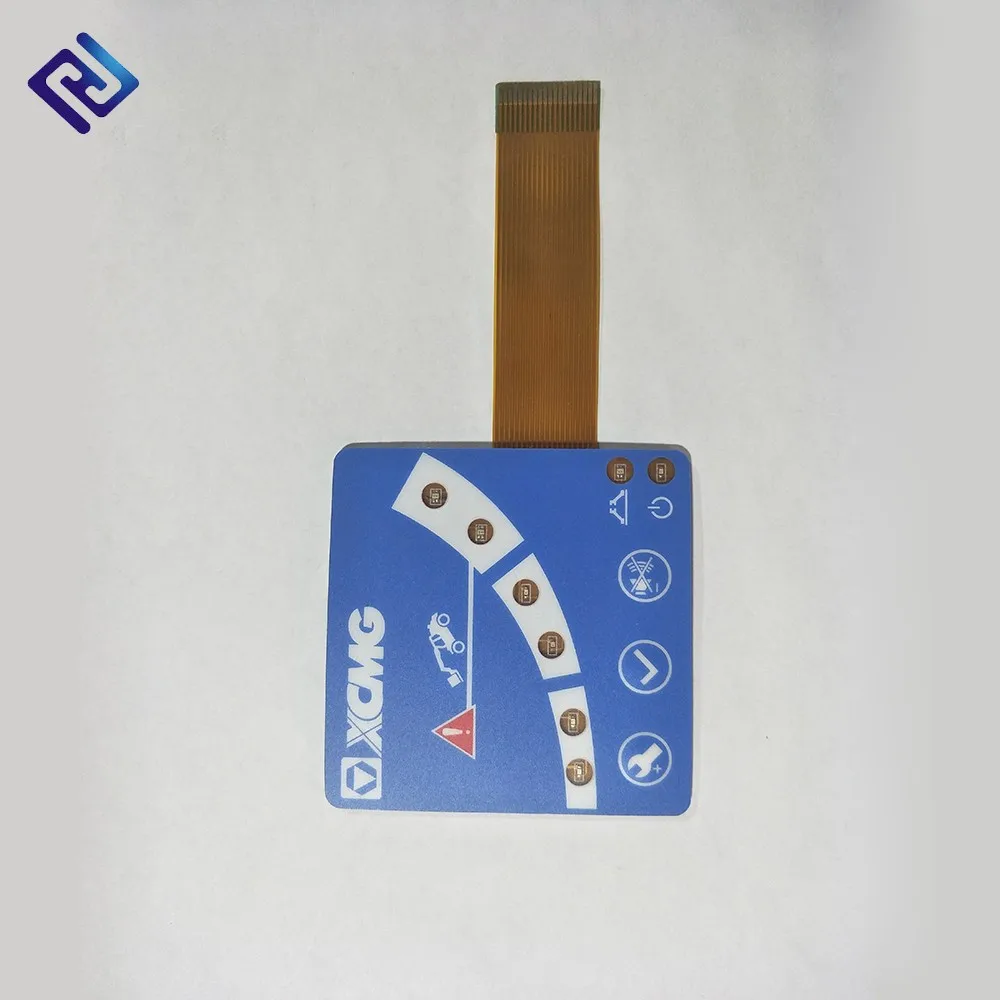

Embossing metal dome membrane keypad keyboard used for instrumentation equipment

1
Material
PET(polyester) ,PC(polycarbonate)
2
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
3
Embossing
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes                                                                                2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
4
Color
Pantone and RALcolor matching system.
5
Keys Options
1.For a tactile response and indicate the location of switches                                                    2. Tactile Keys: metal domes or poly domes                                                                                      3. Non-tactile keys: flat button, printed silver spot on the circuit
6
Cables
is extension of circuit and communication with your device
7
Circuitry option
1. Silver printed conductive inks                                                                                                            2. Copper etched circuit /Polyimide Kapton circuit ( FPC) 3.PCB circcuit board
8
Connector Tail
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch                                                2. Female connector with 2.54MM pitch
Product Show
Related Products

Customized poly dome keypad button tactile membrane switch with 3M adhesive

Industrial Metal Dome Embossed Membrane Switch Panel


Custom metal snap dome membrane keypad button remote cotrol keyboard

Technology Process
Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now.Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

Nowadays, MEMBRANE owns sixty professional mold-making machines controlled by digital computers, which successfully transformed silkscreen printing to digital printing. There are 4 Japanese Mimaki heat-setting digital printers and 11 cold light printers of various models. We have independent laser cutting workshops and 18 laser cutting machines of different models. The equipment of all departments includes 7 pressure machines, 4 cutting mould machines, 37 silkscreen printing machines, 3 drying tunnels, 8 curing machines, 6 punching machines, 7 digital engraving machines, 5 linear cutting machines and others machines.

Certifications

ALIBABA/SGS
Obtain SGS certification from alibaba international supplier

GB/T19001-2016/ISO9001-2015
Our products has passed the quality management system certification.

Enjoy High Reputation
Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province

15 Years Experience
Honesty is the basic of corporate. Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field

Packing & Delivery

Packing

Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-20 days
Payment Terms:T/T West Union
Supply Ability:100000 pieces per Month

Delivery


the sample time was 1-3days
small order :5-7days
big order:10-20days


FAQ

1.How can i get a sample to check your sample?

After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4.what kind of transportation do you offer?

Express such as UPS TNT DHL etc......
