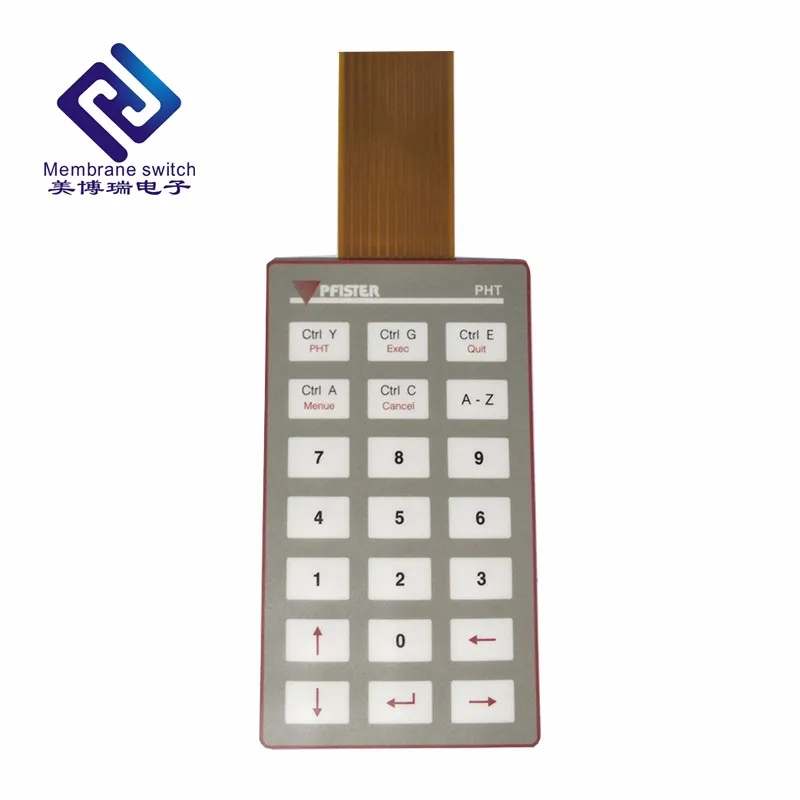

Metal dome autoflex ebg180 push button membrane keypad switch with touch screen panel

FOB Reference Price:Get Latest Price
$0.38 - $8.80 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
OEM
Application:
Computer Keyboard
Keypad Button Material:
Metal
Material:
PET PC PVC
Certification:
:ISO9001:2015,SGS
Color:
Pantone
Size:
Customized Size
Life Expectancy:
1 Million Times
Type:
Meet Customer's Demand
Feature:
Water-proof, Dust resistance,Durable
Printing:
Silk Screen Printing, Digital Printing
Rear Adhesive:
3M467,3M468
Button Type:
flat or emboss
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package or according to your request.
Port
Beijing
Lead Time :
within 1-12 days
Product Description

Metal dome autoflex ebg180 push button membrane keypad switch with touch screen panel

Membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

Overlay Materials
The most commonly used base materials are autotype polyester and polycarbonate.
Rear Adhesive
 3M 467MP, 3M 468MP ,and other double side adhesive  ; foam adhesive
Connector
2.54 female connector or male connector,2.54 bending pin connector,solder pin ,1mm ZIF connector
Window
die cutting window,clear window ,colored window.
LED
single or two tone LED can be embedded
Matching color
Pantone and RAL color matching system.
Printing Type
screen printing or digital printing.
Standard Tolerances
+/-.010 inch.(+/-0.2mm)
Thickness
0.4-1.2mm
circuit layout
silver printed conductive circuit,FPC
subject to customers detailed requests,customized design accept
Products Structure

1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.

2.Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive. The material is same as the fourth layer. Only the thickness will be different according to the physical truth.

3.Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized PET printed with silver-filled electrically conductive inks and also dielectric inks, which used for fastening metal domes.

4.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.

Technology Process
Related Products

Custom PET/PC lexan membrane switch keyboard keypad displayed with LED


New products one button membrane switch LED display panels mini digital keyboard with transparent windows


Company Profile

MeiBoRui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.


Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer.


Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.


In China, we have two factories. Nowadays, many large European enterprises are our partner.  If you are searching for membrane switch manufacturer from China, we are the best choice with the lowest price, the best quality and state of the art technology.

Certifications

15 Years Experience

Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field.

Enjoy High Reputation

Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.

The Member of Alibaba Trust Pass

Alibaba proved our growth ten years ago. From establishment, our company is continuously expanding and our products won the international market’s recognition.

Packing&Delivery

Packing

Payment & Shipping Term
Price:0.8-8.8/piece
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T, West Union
Supply Ability:100000 pieces per Month

Delivery

The sample time was 1-3days
Small order :5-7days
Big order:10-20days


FAQ

1、What is your terms of delivery?
Mainly by air.
2、What is your sample policy?
We will provide free sample, but buyer need pay for the freight and taxes.
3、How can I buy this product?
You can contact us on the internet or call to us.
4、How to guarantee the after sales service?
Our company already passed the SGS authoritative certification. We will get the most guarantee the buyer’s profit. If any quality problem happened, we will provide returning and exchanging goods service. Most professional sales team will serve for you.
