Custom CNC Membrane Keypad Push Button Membrane Switch with 3M Adhesive for Industrial Controller

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 50 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 3000 >3000
Est. Time(days) 7 12 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Samples - $10.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Name:
Custom cnc membrane keypad push button membrane switch
Feature:
Water-proof
Back adhesive:
3M467,3M468
Dome:
metal dome/poly dome
Cable:
flexible,custom cable length,tracks pitch
Color:
Pantone or Ral Color
Circuit:
printing silver ink on PET material
Printing:
Screen Printing and 3D digital pringting
Connector:
2.54mm female connector or 1mm ZIF connector
Key option:
Touch button
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Custom Membrane Switch Keypads and Keyboards in Electronic Components & Suppliers
50 pieces in a plastic bubble bag then put in big size paper carton, or regarding to customers requirement.
Port
Beijing
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 3000 >3000
Est. Time(days) 7 12 15 To be negotiated
Video Description
Product Description
Custom Cnc Membrane Keypad Push Button Membrane Switch with
3M Adhesive for Industrial Controller

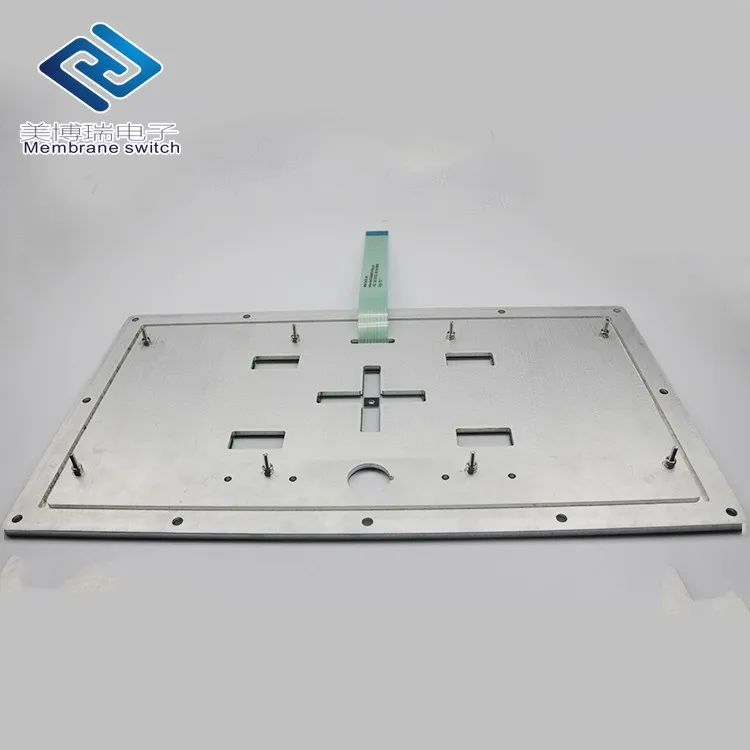

Membrane Switch With aluminum back support

six layers:

graphic overlay

overlay adhesive

Upper circuit layer

Circuit spacer

Lower circuit layer

Back adhesive

Total thickness rang from 0.6-0.8mm

Membrane Switch With aluminum back support

This technique is common. But there are less enterprises can do well and carry forward. It need to paste the back panels on the back of ordinary panel according to customer's needs.

1
Material
PET(polyester) ,PC(polycarbonate)
2
Components
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
3
Embossing
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes                                                                                 2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
4
Color
Pantone and RALcolor matching system.
5
Keys Options
 1.For a tactile response and indicate the location of switches                                               2. Tactile Keys: metal domes or poly domes                                                                           3. Non-tactile keys: flat button, printed silver spot on the circuit
6
Circuitry option
  1. Silver printed conductive inks                                                                                                2. Copper etched circuit /Polyimide Kapton circuit ( FPC)   3.PCB circcuit board
7
Connector Tail
  1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch                                            2. Female connector with 2.54MM pitch
Products Showcase
Related Products

Membrane switches have been a critical component in connecting customers or end-users to your machines for over 20 years. As a leading-edge custom membrane switch manufacturer, MeiBoRui(MBR) produces custom membrane switches, membrane keypads and keyboards, and tactile membrane keypads, which are tailored to your exact requirements. Our design engineers work closely with you, offering advice and support to create a membrane switch design that will meet your functional, cosmetic, cost and delivery criteria.

Standard 3*4 12 keypad membrane switch keyboard with 2.54mm pitch pin header for test equipment

LED display window high quality membrane switch keypad with 2.54mm pitch Dopunt connector


Fashion design transparent window keypad electrical membrane

switch

MeiBoRui(MBR) can offer both non-tactile and tactile switches in a range of forces that can be combined either with a customised graphic overlay or a silicon keypad. We can customise the final solution to incorporate:


 • PCB or flexible PCB – incorporate your membrane switch onto a
   PCB for ease of connection and to reduce the cost of
   a separate control board.
 • Metal or plastic back panels – Increase the rigidity of
   the membrane and allows for ease of assembly to a casing.
 • Backlighting – Selective or indicator backlighting by placing SMD
   inside the membrane
 • Integrated Electronics – incorporate metal domes, LED's,
   connectors into your membrane panels.
 • Shielding – To meet your ESD, EMI or RFI requirements
 • Integration with touchscreens – Add membrane switch keys to
   supplement your touchscreen product

Membrane switches have been a critical component in connecting customers or end-users to your machines for over 20 years. As a leading-edge custom membrane switch manufacturer, MeiBoRui(MBR) produces custom membrane switches, membrane keypads and keyboards, and tactile membrane keypads, which are tailored to your exact requirements. Our design engineers work closely with you, offering advice and support to create a membrane switch design that will meet your functional, cosmetic, cost and delivery criteria.

Technology Process
Our Company

Meiborui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2800 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.


Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.

The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years' attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.

We have two factories in China . Nowadays, many famous European enterprises are working with us. If you are searching for a reliable and successful membrane switch manufacturer in China, we are the best choice which with the best quality, the lowest price and state of the art technology. You are welcome to buy directly from us and cut out the middlemen.

Snowy Yang
MEIBORUI Electronic Information Technology Co., Ltd.
Tel: +86 18103266698
Skype:+86 18103266698

QQ:861739251
Mail: snowy(at)mbrxh.com

Website: https://mbrxh.en.alibaba.com
http://en.mbrxh.com

Certifications
Packing & Delivery

Packing

1.Big paper carton for all membrane switches and graphic overlay (outer) .
2.White or red plastic bubble bag for tactile membrane keyboard (inner) .

Delivery

Delivery Time: small order 7--10 days, Mass production: 10-20 days
Payment Terms:T/T,Western Union,Visa, E-checking, PayPal
Supply Ability:100000 pieces per Month
