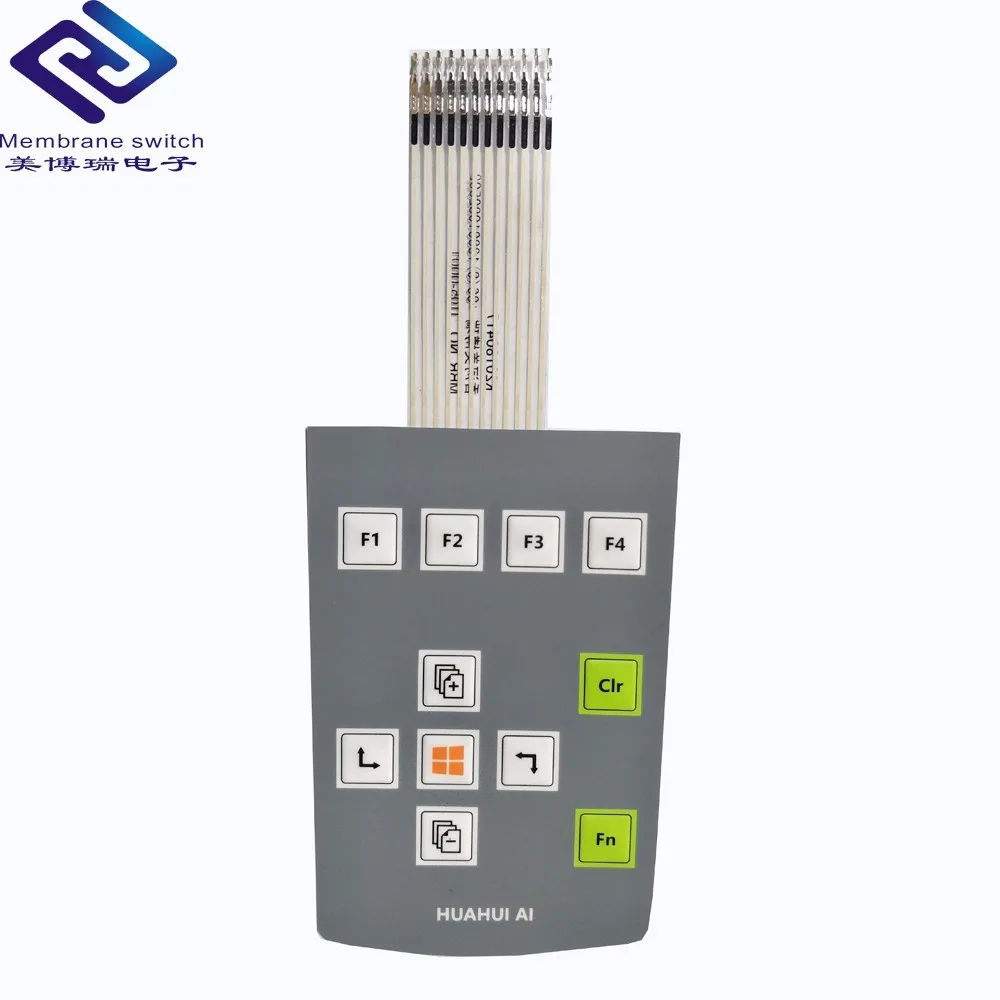

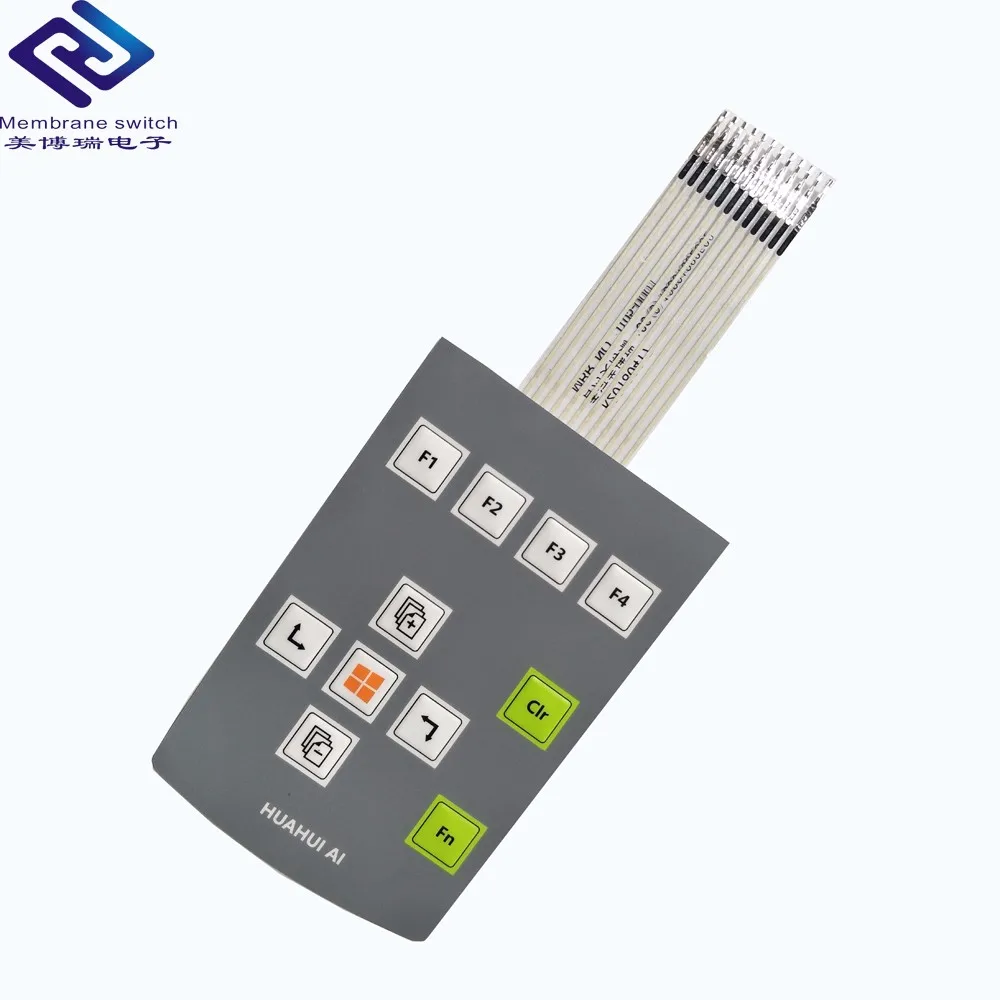

Embossed tactile button membrane keypad with PET graphic overlay

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Samples - $1.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Meiborui
Model Number:
MBR
Application:
Telecommunication Equipment
Keypad Button Material:
PET/PC
Name:
Embossed tactile button membrane keypad with PET graphic overlay
Certification:
ISO9001
Size:
Customized Size
Material:
PET/PC
Color:
Pantone
Printing:
Digital Printing
Dome:
Metal Dome -poly Dome
Button Type:
Flat/Embossed
Feature:
Water-proof
Surface:
Matte/Glossy
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50pcs in a polybag
300pcs in a carton
GW: 15.5kgs
Carton Size: 40x35x30cm
Port
Tianjin
Products
Overlay
PC 0.175MM/PET F150,V200
Spacer
PET Spacer 0.1MM
Top Circuit
Dopunt PET 0.1MM
Spacer
PET Spacer 0.2MM
Button Circuit
Dopunt PET 0.1MM
Adhesive
3M468 0.13MM

Components


1,with metal dome tactile button
2,with digital printing overlay panl
3,with flex cable
4,with 2.54mm female connector
5,LED ,Transparent Window is available
6,Adhesive.3M Glue



Spercifications for Meiborui Products
Embossing
Gloss / Clear, Matte/Texture, Fine, Velvet
Key Options
For a tactile response and indicate the location of switches
1. Tactile Keys: metal domes or poly domes
2. Non-tactile keys: flat button, printed silver spot on the circuit

Base:
-rigid pcb-based:
    A. Single-sided, double-sided, and multi-layer designs
    B. Plating options: tin-lead, nickel, gold
    C. Tactile, non-tactile
    D. with metal/ polyester tactile domes
    E. Pillow or rim-embossed graphic overlays
    F. Adding LEDs and other components
    G. Graphic overlays that can be digitally printed, screen printed, or both

-fpc based:
   -silver flex
   -copper flex
Components
LED, metal dome, diode, connector and circuit...

All these can be designed and made according to customer requirements.
Adhesive Tape
3M 468/467/9080/55260/9448/9672/9495/4920/4930/5604/9731
Nikto 8019/8029/8209/89525
Lohmann 9702
Tesa 4967
...
Overlay Material:
PET: Auto-type
Autotex F150, F200, F280, V150, V200, V280, XEV150, XEF200
Autoflex EBG130, EBG180, EBG250, EBA130, EBA130, EBA250
Autostat CT3, CT4, CT5, CT7
DuPont etc.

PC: GE LEXAN-8010 8B35 8B35F HP92S HP40 FR700 FR60

Connector Tail
1.Zero insertion force (ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch;

Services

●Prompt reply (trading team serves all day)

●Prefessional design (supported by a strong engineer team)

●Customer-oriented (focusing on customer needs and expectations)


Detailed Images
Certifications
Packaging & Delivery

Security and Speedy

For small orders, shipping by express, e.g. DHL, FEDEX, UPS...

Packaging Details
50pcs in a polybag
300pcs in a carton

Well-sealed products are ensured.

Delivery Time: 12-15 days
