Custom Tactile Buttons Membrane Overlay Switch With LCD Clear Window And LED Light

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MBR
Model Number:
OEM
Application:
Telecommunication Equipment
Keypad Button Material:
PVC,PET,PC,Sandwich,Circuit,3M glue
Name:
Custom Tactile Buttons Membrane Overlay Switch With LCD Clear Window
Feature:
Water-proof

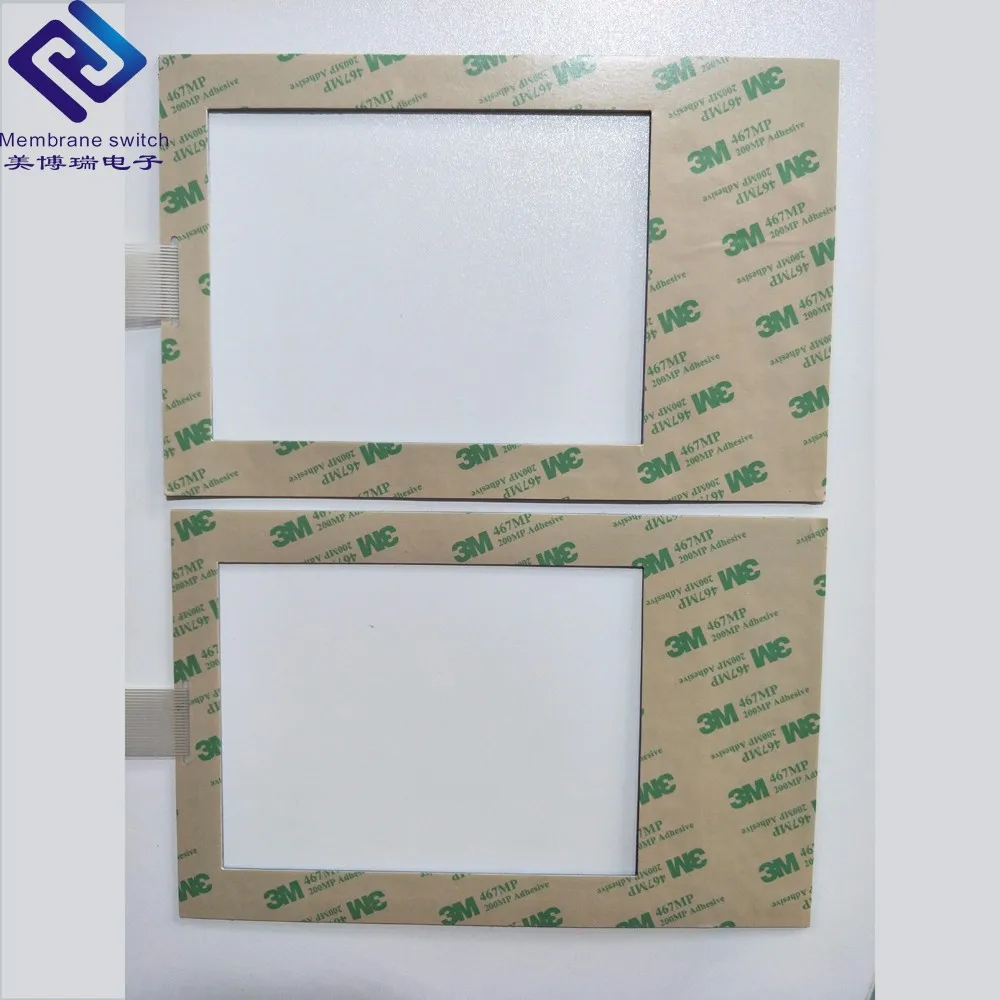

Back adhesive:
3M467,3M468
Certification:
ISO9001:2015
Cable:
flexible,custom cable length,tracks pitch
Circuit:
printing silver ink on PET material
Color:
Pantone or Ral Color
Dome:
metal dome/poly dome
Connector:
2.54mm female connector or 1mm ZIF connector
Type:
Meet Customer's Demand
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 pieces in a poly bag then put in carton, or regarding to custoners requirement
Port
Tianjin
Lead Time :
within 10-15 days
Product Description

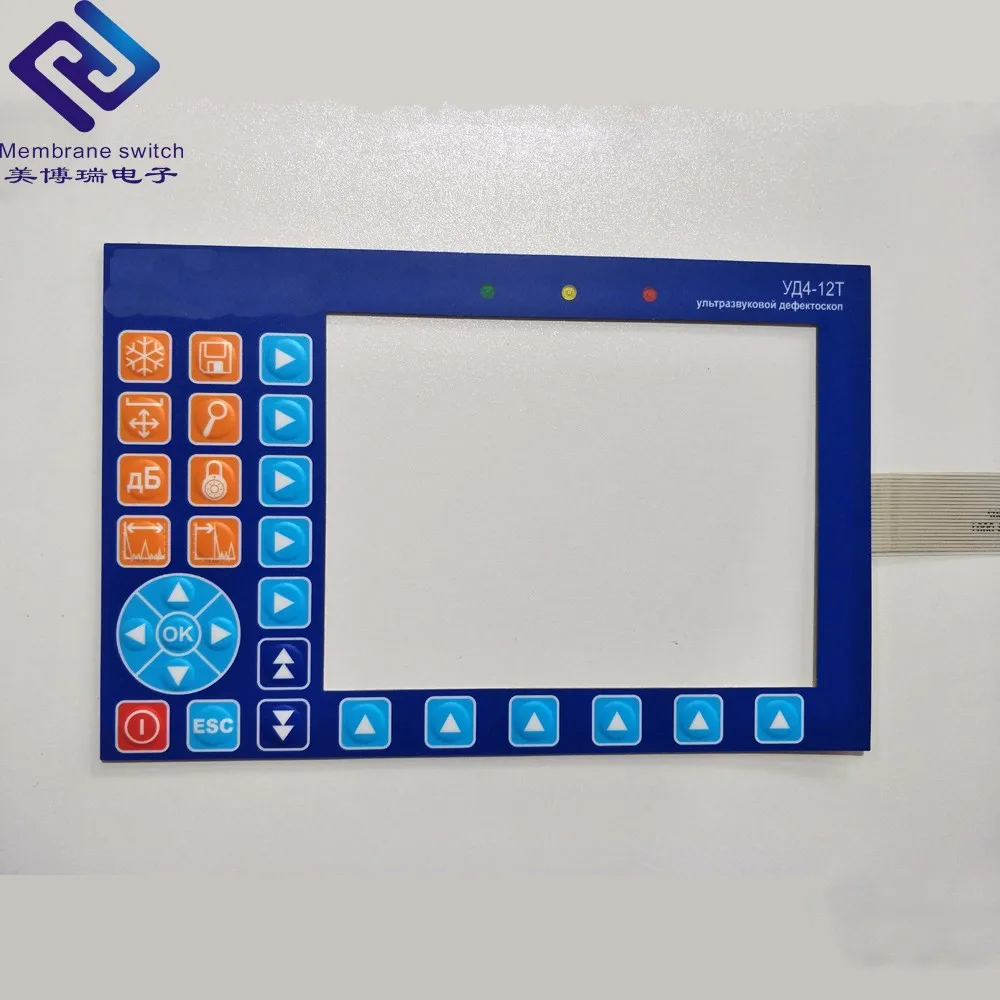

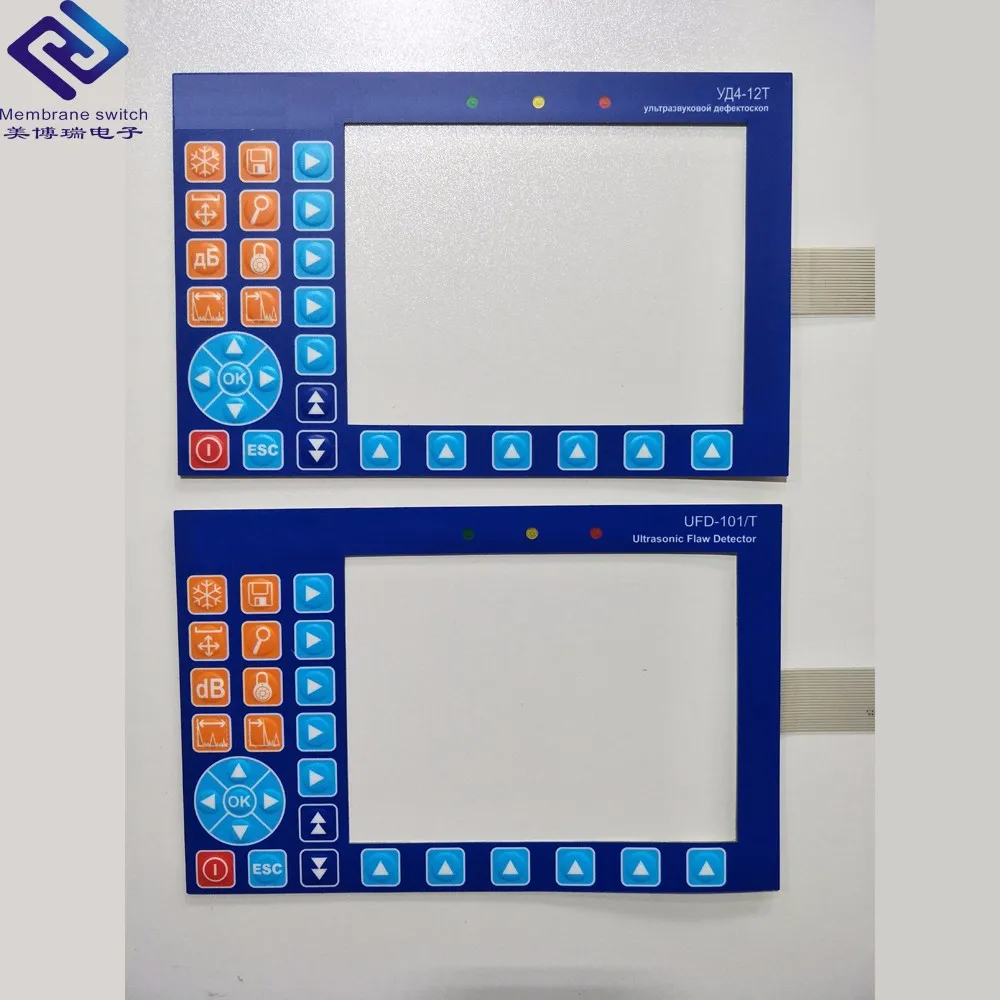

Custom Tactile Buttons Membrane Overlay Switch With LCD Clear Window And LED Light

 Membrane switches are generally made from six different layers. This includes membrane, graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the user to control the machine. It can also include a flexible circuit for less expensive alternatives. Another layer will contain the printed circuit which allows a signal to be transmitted. The ink that is used for the printing on the circuit is generally made up of a variety of metals. This helps for the signal to be conductive for turning on and off. Membrane switches allow for communication to take place in electronic devices. Membrane switches are a piece of equipment that can be highly sophisticated or rather simple by design

Part
Ordinary Material
Graphic Overlay
PC
Glossy:0.175/0.25/0.35/0.5mm thickness

Matte:0.175/0.25/0.35/0.5mm thickness
PET
Fine Texture:0.15/0.20mm thickness
Valet Texture:0.15/0.20mm thickness
Glossy with hard coat:0.18mm thickness
Top Adhesive
PET Double -sided adhesive
0.10/0.22/0.28mm thickness
Paper Double -sided Tape
0.10mm thickness
Transfer Tape
0.06/0.12mm thickness
Retainer
PET
Glossy 0.125mm
Spacer
PET Double-Sided Tape
0.225/0.275mm thickness
Circuit Layer
PET
Glossy 0.1/0.125mm thickness
Rear Adhesive
Paper Double-sided Tape
0.1mm thickness
Transfer Tape
0.06/0.12mm thickness
Connector
Pin
Male/Female 2.54mm
Related Products
Certifications

GB/T19001-2016/ISO9001-2015
Our products has passed the quality management system certification.

ALIBABA/SGS
Obtain SGS certification from alibaba international supplier

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

15 Years Experience
Honesty is the basic of corporate. Since 2002, MEIBORUI was the member of Alibaba Trade Pass. We are very proud to be the golden member of Alibaba Trade Pass for 15 years, which is the pioneer in the same field

Our Company

MEMBRANE Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.

Our company is a pioneer among the numerous membrane switch manufacturers. We are the factory behind of world famous membrane switch manufacture. We dare to say that we are the core factory on the membrane switch field.

The tooling is of our own manufacture using self-service R&D equipment, which can greatly reduce cost. From 2010, we introduced many state of the art Mimaki digital printer. Through several years’ attempt, we have succeeded in transforming traditional silk-screen printing to digital UV printing.

We have two factories in China . Nowadays, many famous European enterprises are working with us. If you are searching for a reliable and successful membrane switch manufacturer in China, we are the best choice which with the best quality, the lowest price and state of the art technology. You are welcome to buy directly from us and cut out the middlemen.

Technology Process
Packing & Delivery

Packing

Payment & Shipping Term
Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:5-10 days
Payment Terms:T/T West Union Paypal
Supply Ability:100000 pieces per Month

Delivery


the sample time was 1-3days
small order :5-7days
big order:10-20days


FAQ

1.How many years of experience do you have?
Established in 1990 with a history of 27 years experience.
we have more than 30 senior employees who have more than 15 years of experience in manufacturing membrane switches

2. what is your advantage?
Our FPC technology, LGF technology, touch screen technology, LCD technology, and complex membrane switch manufacturing project in our business are very clear improved. Our technology and manufacturing level in this platform should be said to be far ahead, there is a clear advantage

3. Can you make the samples free for us?
Yes,of course.there are 3-5 pcs samples can be free for checking quality.

4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
