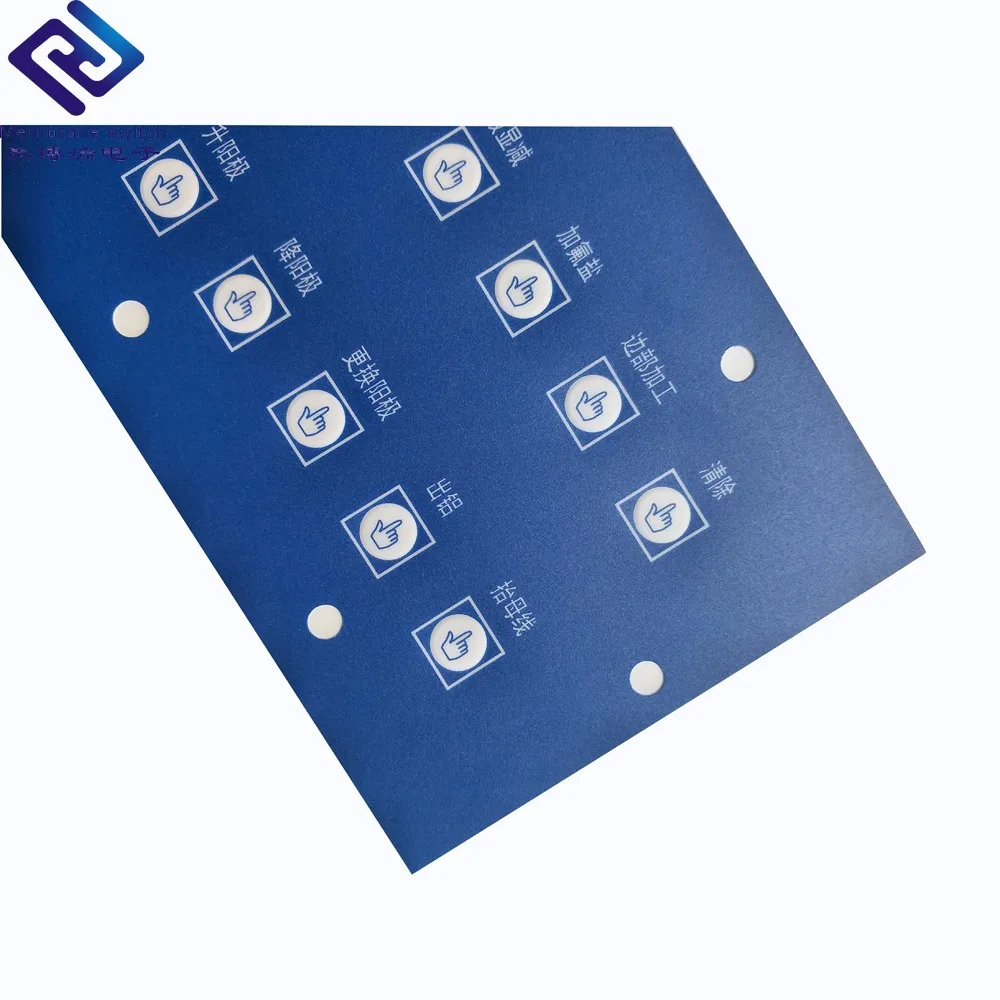

Plastic Housing Push Button Remote Control Switch With 3M Adhesive

FOB Reference Price:Get Latest Price
$0.59 - $5.95 / Pieces | 10 Piece/Pieces (Min. Order)
Samples - $1.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Meiborui
Model Number:
MBR
Application:
Telecommunication Equipment
Keypad Button Material:
Autotex PET or Lexan PC
Certification:
ISO9001:2015 SGS
Components:
LED, metal dome, connector and circuite
Name:
Plastic Housing Push Button Remote Control Switch With 3M Adhesive
Material:
polyester, polycarbonate,Conductive inks
Color:
Pantone and RAL
Dome:
metal dome -poly dome
Feature:
Water-proof
Printing:
Screen Printing
Circuit:
Printed Silver Conductive Inks
Type:
Meet Customer's Demand
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
should firstly put in a polybag per 50 pcs ,usually,then packed in a big carton.
According to the clients' requirements.
Port
Tianjin For Membrane Switch Graphic Overlay
Product Description
A membrane switch or flat panel switch consists of a printed polyester or polycarbonate overlay adhered to a printed circuit using pressure to open and close a circuit. A membrane switch is an interface between man and machine, enabling an operator to communicate with equipment, instrumentation, or machinery. The membrane switch circuitry is most often screen printed using conductive inks which are typically made of silver or carbon. Membrane switches are part of a range of devices considered to be user interfaces or human machine interfaces (HMIs).
Overlay
PC 0.175MM/PET F150,V200
Spacer
PET Spacer 0.1MM
Top Circuit
Dopunt PET 0.1MM
Spacer
PET Spacer 0.2MM
Button Circuit
Dopunt PET 0.1MM

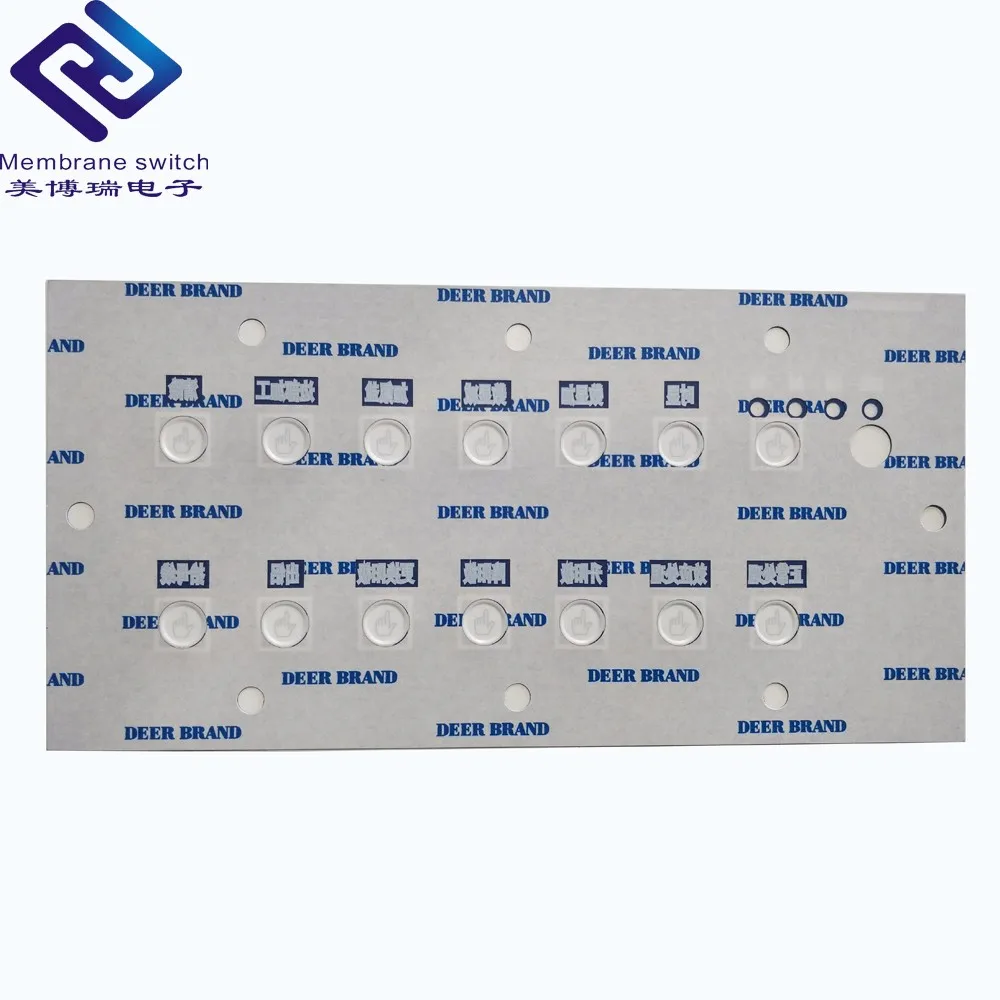

Adhesive
3M468 0.13MM

Components


1,with metal dome tactile button
2,with digital printing overlay panl
3,with flex cable
4,with 2.54mm female connector
5,LED ,Transparent Window is available
6,Adhesive.3M Glue

Custom Membrane Keypad Solutions & Features

1.Pillow or rim-embossed keys and graphics
2.Metal dome switches and poly dome tactile membrane switch assemblies
3.Flat switch or non-tactile membrane switches
4.Backlighting of membrane keypad switch
5.Environmentally sealed membrane keypad assembly
6.Etched copper on Kapton flex circuitry or printed silver circuit
7.Latest dome technology for tactility
8.Integrated transparent or smoked windows
9.Thin and low profile

Overlay Printing
Spelling mistake
Not allowed
Incorrect Font
 Not allowed
 Dimension error
>0.2mm is Not allowed
 Color
Less than 2 levels with the specified Pantone color
Dot impurities
Diameter less than 0.2mm
Distance between two impurities is more than 50mm
The number of impurities is less than 2 within 100cm
Linear impurities
Width is less than 0.2mm,length is less 0.4mm in panel surface.Distance between two impurities is more than 50mm
Window impurities
 Diameter is less than 0.2mm in the center of the window
Related Products
Our Company

Meiborui Electronic Information Technology Company was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, Overlays as well as other correlate products.MEMBRANE has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now. Recently we get the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.


Nowadays, MEMBRANE owns sixty professional mold-making machines controlled by digital computers, which successfully transformed silkscreen printing to digital printing. There are 4 Japanese Mimaki heat-setting digital printers and 11 cold light printers of various models. We have independent laser cutting workshops and 18 laser cutting machines of different models. The equipment of all departments includes 7 pressure machines, 4 cutting mould machines, 37 silkscreen printing machines, 3 drying tunnels, 8 curing machines, 6 punching machines, 7 digital engraving machines, 5 linear cutting machines and others machines.

Certifications
Packing & Delivery

Packing

Minimum Order Quantity:10pieces
Packaging Details:PE bag, Carton, Wooden crate
Delivery Time:12-15days
Payment Terms:T/T West Union
Supply Ability:100000 pieces per Month


Delivery

FAQ

1.How can i get a sample to check your sample?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.

2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.

3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

4.what kind of transportation do you offer?
Express such as UPS TNT DHL etc......
